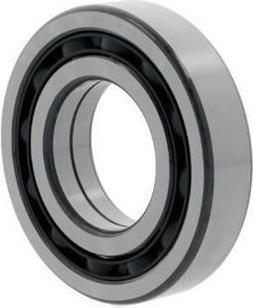

FAG Four-point bearing QJ306 TVP Inner-Ø 30 mm Outer-Ø 72 mm Width19 mm
6 pieces in stock at supplier
Product details

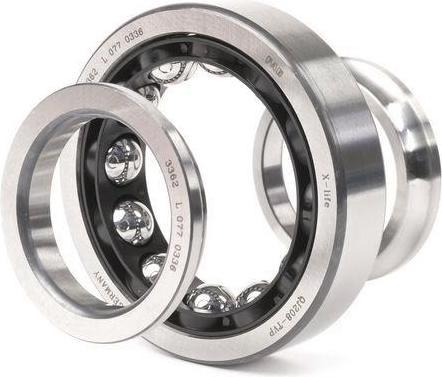

Four-point bearings belong to the category of single-row angular contact ball bearings and therefore require significantly less axial space than double-row versions. The bearings consist of solid outer rings, split inner rings, and ball circuits. The two-part inner rings allow for a large number of balls to be accommodated. The inner ring halves are matched to the respective bearing and should not be interchanged with those of the same size. The outer ring with the ball circuit and the two inner ring halves can be installed separately. The different versions are identified by so-called suffixes: C3, C4 = clearance class, MPA = solid brass cage, TVP2 = solid plastic cage, N2 = 2 retaining grooves on the outer ring. Special feature: plastic cage.
Ball bearing type | Deep groove ball bearing |
Outside diameter | 72 mm |
Internal diameter | 30 mm |
Width | 19 mm |
Item number | 22113646 |
Manufacturer | FAG |
Category | Ball bearings |
Manufacturer no. | 10067651 |
Release date | 9.9.2022 |
Ball bearing type | Deep groove ball bearing |
Load rating dyn. | 58.50 kN |
Load rating stat. | 43 kN |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 piece Four-point bearing QJ306 -TVP Inner-Ø 30 mm Outer-Ø 72 mm Width19 mm |
Outside diameter | 72 mm |
Internal diameter | 30 mm |
Width | 19 mm |
Weight | 368 g |
