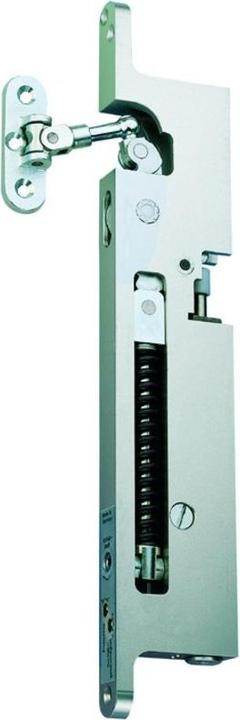

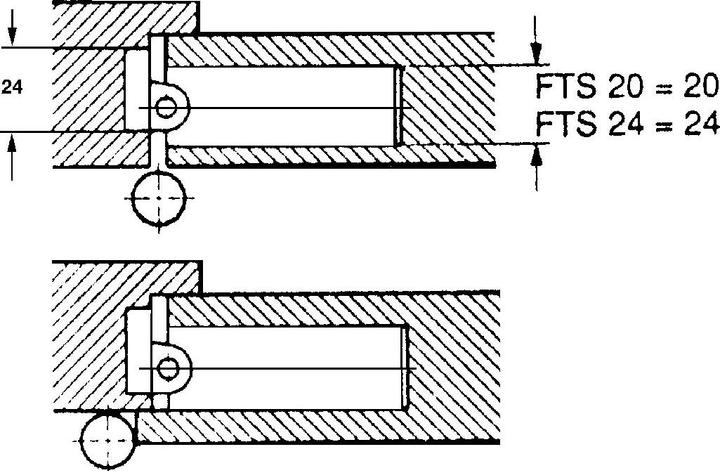

For concealed installation in the vertical door frame of flush or rebated internal doors made of wood, plastic, or metal. Universally applicable for all door shapes, including round, flat, basket, and pointed arches.

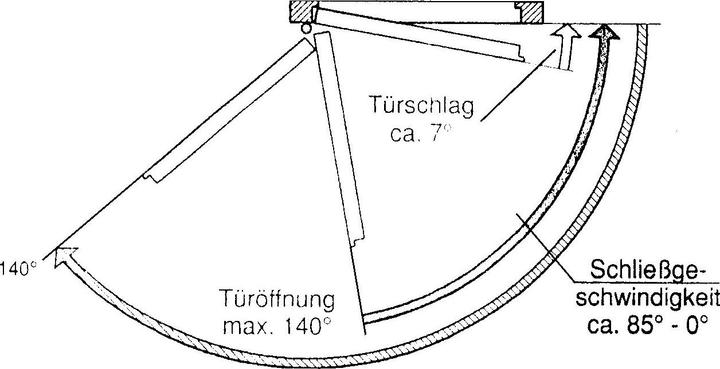

The closing force can be adjusted from the front, with no visual impairment of the door and no disturbing hardware parts, as the door closer is invisible. Stepless adjustment of valve functions from the front: closing speed, closing moment, end stop. Thermomatic valves ensure a consistent closing function even with temperature fluctuations. A safety valve in the closer protects against overload. Maximum door opening angle is 140°, with the opening angle depending on installation dimensions; door stops should be set for maximum door opening angle. Controlled closing starts at approximately 90° door opening angle. High closing pressure in the closed position allows for easy door opening due to reduced opening resistance. Vertical installation below the top door hinge. Anodized aluminum housing, joint arm made of galvanized steel, usable on both the left and right.

Note: Not suitable for use with Simonswerk TECTUS door hinges.

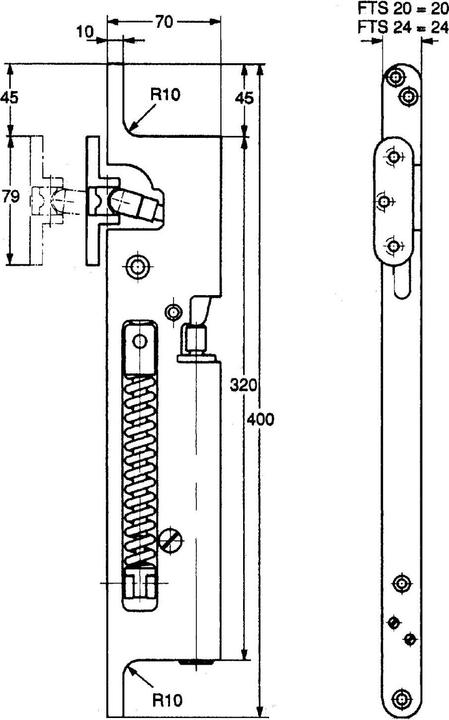

Width (mm): 24
Max. leaf width (mm): 1000
Max. leaf weight (kg): 140
Length (mm): 400
Closing moment: 12-30 Nm
Depth (mm): 70
Min. door thickness (mm): 40
Type: FTS 24 EN 2-3
Brand: GU
Contents (ST): 1.
