Deployment:
Controlled tightening and checking of tightening values.
Use in all industrial production areas.
Working ranges of 0.8 - 200 Nm / 7 lbf-in - 160 lbf-ft are covered.

Design:

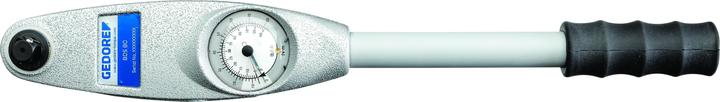

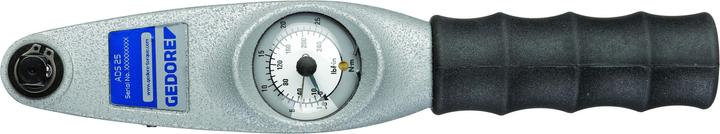

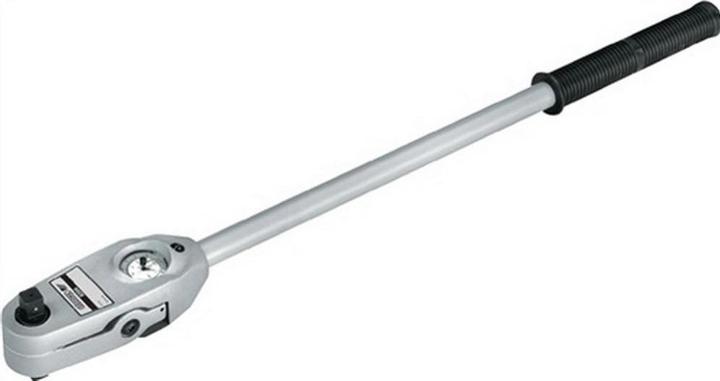

Indicating torque spanner with dial gauge and drag pointer.
1/4", 3/8", or 1/2" double square drive with ball lock for controlled right and left tightening.

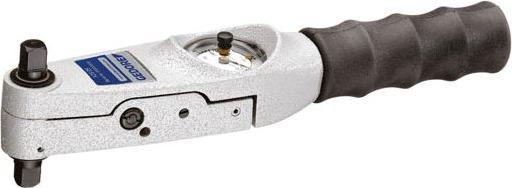

Models No. ADS 4 to No. ADS 40: with integrated ratchet function.
For controlled screw tightening and torque measurements.
Display accuracy: +/- 4 % tolerance of the displayed value.
Designed according to DIN EN ISO 6789, traceable to national standards.
With double scale in Nm and lbf-in or lbf-ft on double-tinted, easy-to-read dials.
Built-in overload protection - mechanical stop up to max. 25 % overload of max. value.
Housing made of light, robust special aluminium construction - painted silver-grey.
Black, non-slip rubber handles.
Models No. ADS 4 to No. ADS 40: EPA (Electrostatic Protected Area) compliant, for use in electrostatically sensitive applications.
Test certificate according to DIN EN ISO 6789.
