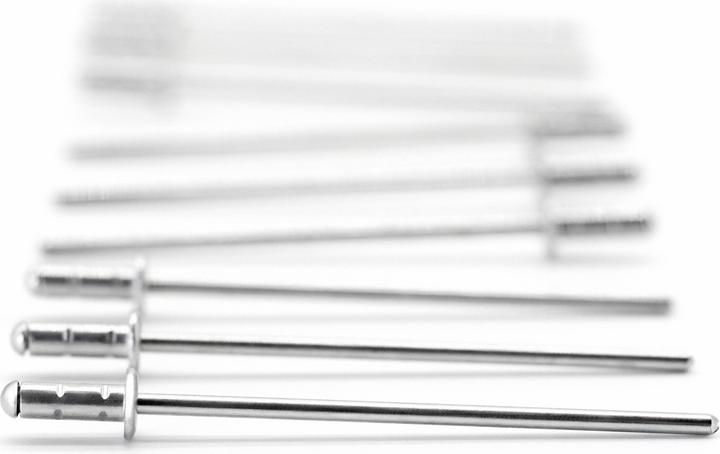

GESIPA UniversalGrip - The PolyGrip connector for hard-to-reach rivet locations. For applications where space is very limited due to construction constraints (thick edges, deep recesses), the use of extended nozzles is recommended. However, a blind rivet with an extended mandrel is essential for this. The UniversalGrip blind rivet is now available for these applications. The UniversalGrip combines the advantages of the PolyGrip with those of an extended mandrel and can be used with all our special-length nozzles.

Application area:

• Hard-to-reach rivet locations of any kind, e.g., riveting in profiles
• Riveting near component edges

The advantages of the UniversalGrip:

• Long mandrel - enables the use of extended nozzles
• Large clamping range - one dimension can replace up to five standard dimensions
• Economical - usable with standard devices and extended standard nozzles
• Standardization - also suitable for small annual requirements

Additional technical specifications:

• Minimum clamping range: 0.5 mm
• Head diameter: 8 mm
• Mandrel diameter: 2.3 mm
• Shear force: 1060 N
• Tensile force: 1680 N.
