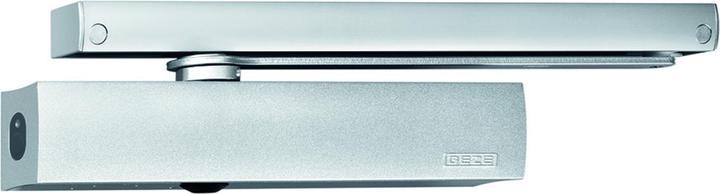

With sliding rail
Single-leaf

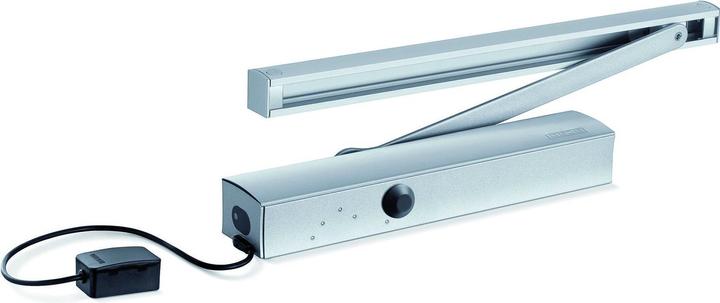

With free-running function, activatable via electro-hydraulic locking by opening the door to approximately 90° once, adjustable closing force size 3-6 according to EN 1155, closing speed and end stop, with adjustable opening damping, with optical size display and test button. Supply voltage 24 V DC

The comfort locking function

The door closer can be easily locked at the end of the free-running area. The comfort locking is located on the axis and not in the sliding rail. The locking by the comfort locking function prevents the door from closing unexpectedly due to drafts. There is no impairment of fire protection; when triggered, the door closes securely - whether locked or not!

Effective range of comfort locking

The comfort locking function is activated together with the free-running function of the door closer at any angle as soon as the door is opened against the closing force into the comfort locking area. The door can be easily released from the comfort locking and then remains in the usual free-running area. By reopening the door to the last maximum achieved door opening angle (e.g., 120°), the door can be locked again.

Mounting type: Door leaf mounting hinge side
Number of leaves: 1
Type: TS 5000 EFS, EN 3-6
Leaf width up to (mm): 1400
Design: with free-running function
Size EN: 3-6
Opening damping: JF
Color: silver
Brand: Geze
Content (GT): 1.
