Gossen Metrawatt System Software METRAwin 10

Manufacturer: Gossen Metrawatt
Designation: System software for METRAHIT
Type: METRAwin 10

Gossen Metrawatt System Software METRAwin 10: further details

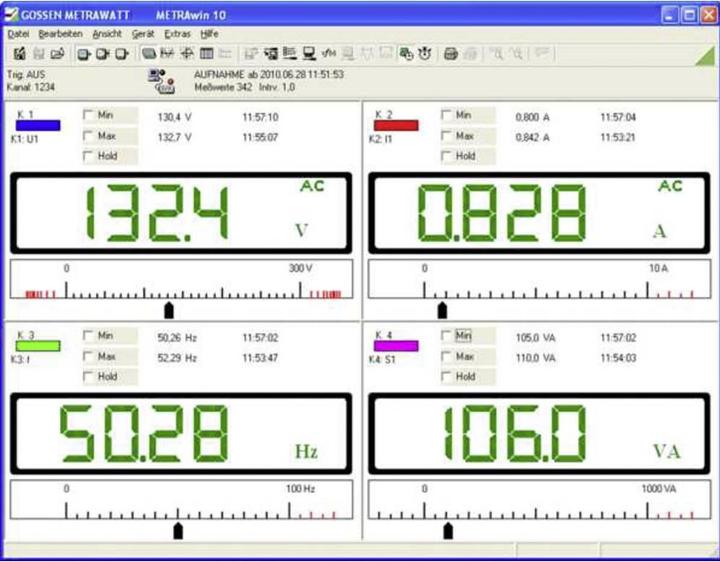

System software for METRAHIT multimeters. With METRAwin 10 and an interface adapter, any METRAHIT multimeter becomes a professional PC-based universal recording system. The measurement values are retrieved from the multimeters using METRAwin 10, managed on the PC, and displayed as Yt or XY diagrams (up to 6 channels) or in tabular form (up to 10 channels). In online operation, the measurement data is displayed on up to four virtual pointer instruments or digital displays (with adjustable limit values). The powerful online arithmetic allows for evaluation and analysis of the data. The sampling rate can be adjusted over a wide range, depending on the type of multimeter and measurement function. The measurement data can be exported as an ASCII file or easily transferred to other Windows applications (e.g., Word, Excel) via the clipboard.

METRAwin 10 / METRAHIT supports the following multimeter types (complete list see below):

• METRAHIT Starline series (AM XTRA, X-TRA, PM series, E- and S-series) in combination with USB X-TRA interface adapter (multi-channel).
• METRAHIT 30M in combination with USB-Hit interface adapter (single-channel) or BD232 (multi-channel).
• METRAHIT 22S-29S / M / C / EX / I in combination with USB-Hit interface adapter (single-channel) or BD232 or memory adapter SI232-II or SI232 (multi-channel).
• METRAHIT 12S-18S / U / T / One+ in combination with RS232 interface adapter (single-channel) or memory adapter SI232-II or SI232 (multi-channel).

The user interface can be set to German, English, French, Spanish, Italian, and Slovak. The software runs on Windows 98, 2000, XP, Vista, 7 (32/64), 8 (32/64), and 10 (32/64). The current version can be downloaded below.

EAN: 4012932103946.
