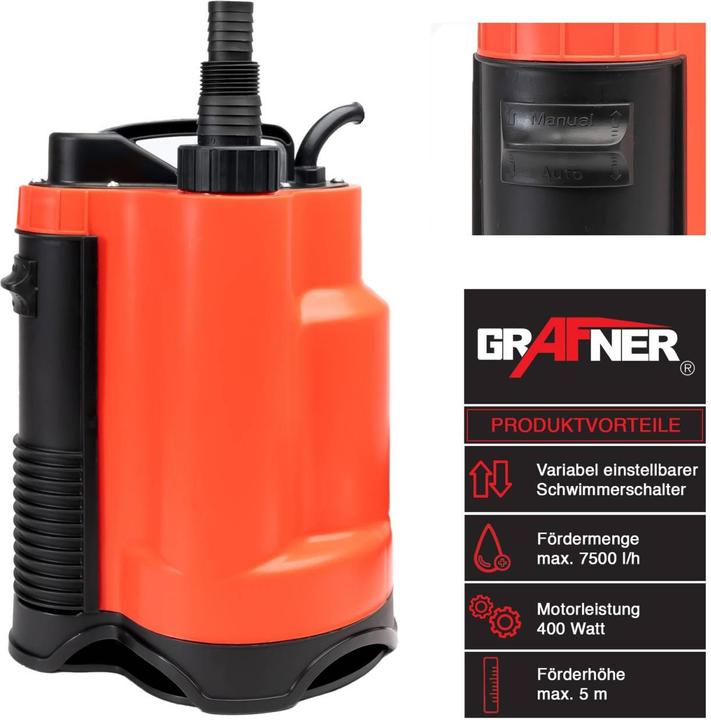

Product Benefits

• Vertical outlet, making it suitable as a drainage pump in narrow shafts from 22 x 19 cm
• High pumping capacity of up to 7500 l/h for quick water drainage
• Pumping height of up to 5 m
• Integrated float switch for automatic or manual operation
• Automatic and manual mode
• 400 Watt motor power
• Housing made of impact-resistant plastic, protection class IPX8
• Water connections 1"/1-1/4"/1-1/2"
• 10 m connection cable
• Dry run protection via float switch

Product Description

Drainage submersible pumps are specially designed for use in narrow drainage shafts due to their compact design and vertical pump outlet. This type of pump features an integrated float switch that allows for either automatic or manual operation. Additionally, the high pumping capacity of up to 7500 l/h ensures rapid water drainage. In manual operation, suction is possible from a water level of 75 mm, and flat drainage down to 25 mm.

Details

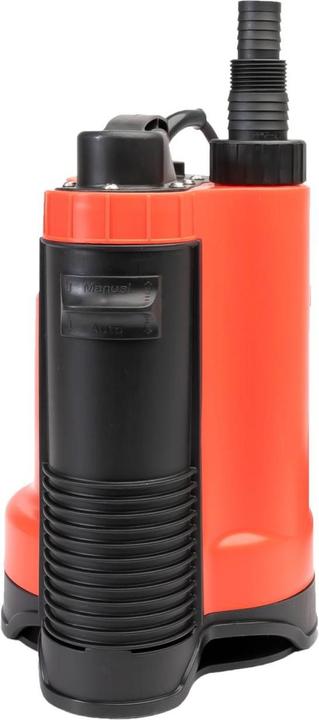

Product: Drainage Submersible Pump
Housing made of impact-resistant plastic
Motor power: 400 Watt
Pumping capacity: max. 7500 l/h
Pumping height: max. 5 m
Submersion depth: max. 7 m
Min. self-priming level in manual operation: 75 mm
Min. drainage level in manual operation: 25 mm
Start level in automatic operation: 170 mm
Shut-off level in automatic operation: 70 mm
Possible connections: 1"/1-1/4"/1-1/2"
Max. grain size: Ø up to 16 mm
Max. water temperature: 35 °C
10 m connection cable - VDE H05RN-F 3G0.75mm²
Weight: 4.1 kg
Pump dimensions: height approx. 36 cm
Delivery includes: 1x drainage submersible pump
Instructions.
