Product Benefits

• Vertical outlet, making it suitable as a drainage pump in narrow shafts starting from 20 x 20 cm
• High pumping capacity of up to 13,000 l/h for rapid water drainage
• Pumping height of up to 9 m

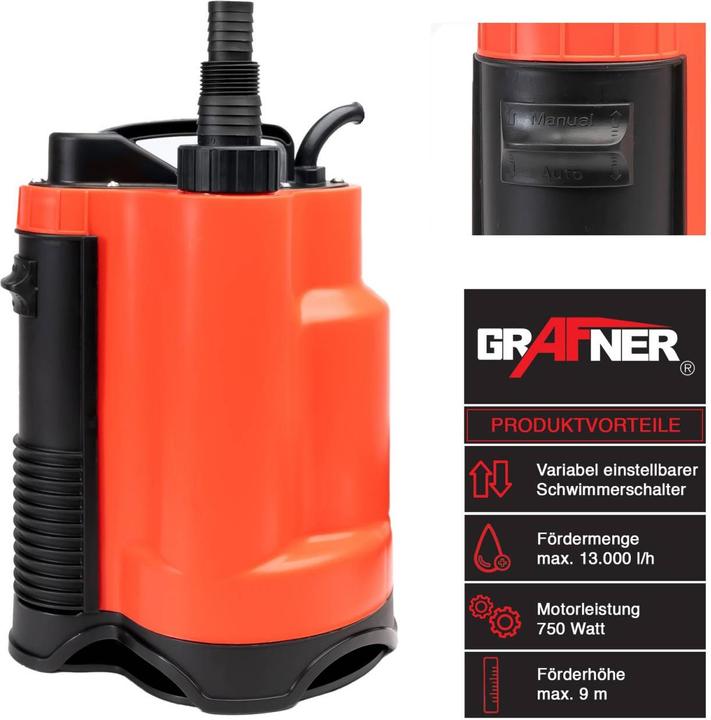

• Integrated float switch for automatic or manual operation
• Automatic and manual mode
• 750 watt motor power
• Housing made of impact-resistant plastic, protection class IPX8

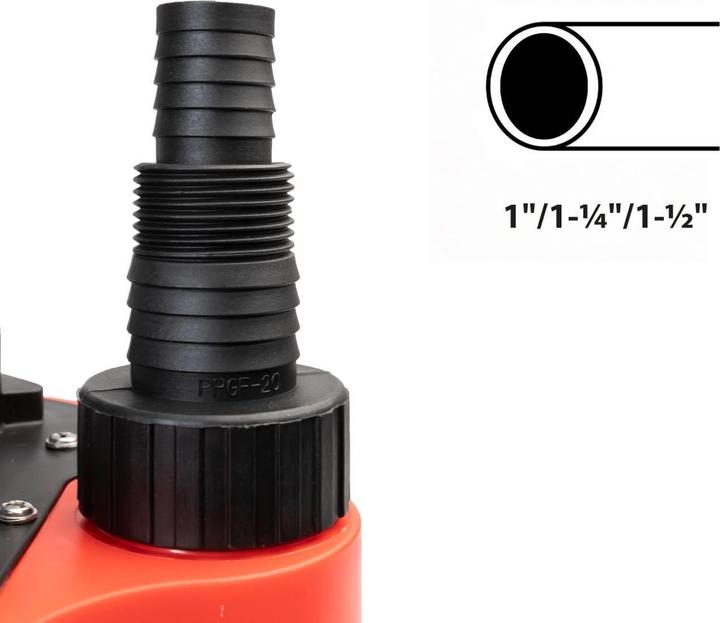

• Water connections 1"/1-1/4"/1-1/2"

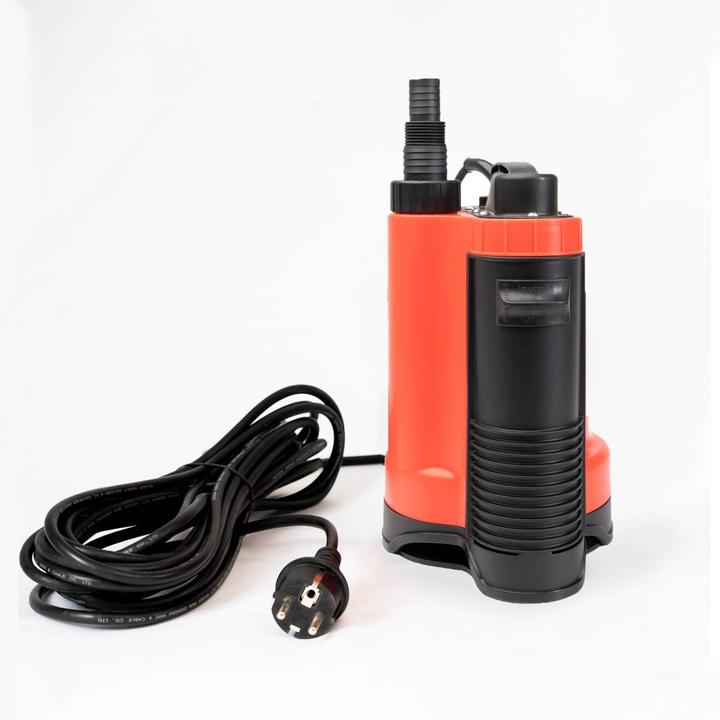

• 10 m connection cable
• Dry run protection via float switch

Product Description

Drainage submersible pumps are specifically designed for use in narrow drainage shafts due to their compact design and vertical pump outlet. This type of pump features an integrated float switch that allows for either automatic or manual operation. Additionally, the high pumping capacity of up to 13,000 l/h ensures quick water drainage. In manual operation, suction is possible starting from 75 mm, with flat suction down to a water level of 25 mm.

Details

Product: Drainage submersible pump
Housing made of impact-resistant plastic
Motor power: 750 watts
Pumping capacity: max. 13,000 l/h
Pumping height: max. 9 m
Submersion depth: max. 7 m
Min. self-priming level in manual operation: 75 mm
Min. suction level in manual operation: 25 mm
Start level in automatic operation: 170 mm
Shut-off level in automatic operation: 70 mm
Possible connections: 1"/1-1/4"/1-1/2"
Max. particle size: Ø up to 16 mm
Max. water temperature: 35 °C
10 m connection cable - VDE H05RN-F 3G0.75mm²
Weight: 5.1 kg

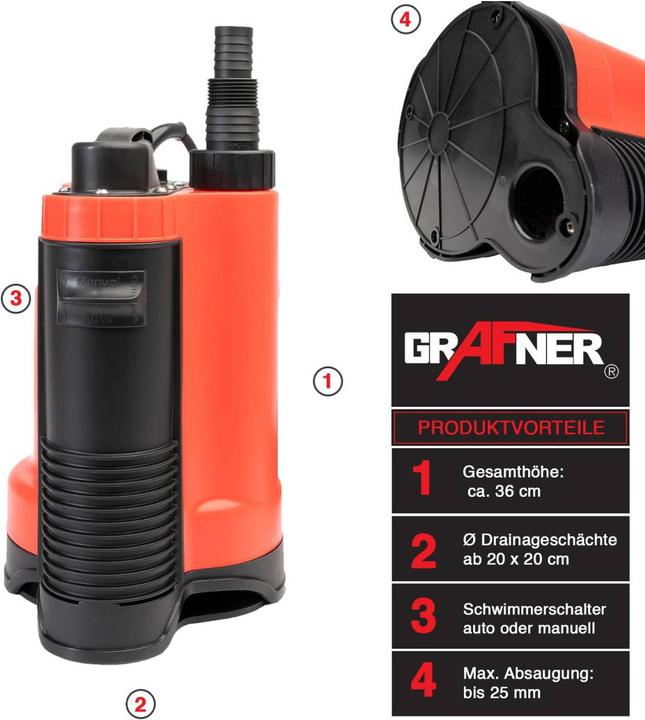

Pump dimensions: height approx. 36 cm
Scope of delivery: 1x drainage submersible pump
Instructions.
