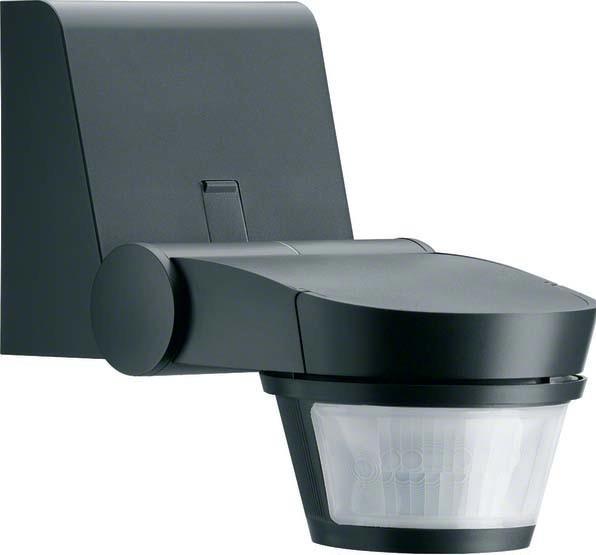

Wireless AP Motion Detector Battery IP55, quicklink, anthracite. The wireless outdoor motion detector IP55 quicklink is suitable for surface mounting and operates in the 868 MHz range. It can be used either via quicklink wireless or integrated through a KNX wireless media coupler into the KNX-TP system. The tool-free quicklink push-button mode is activated via a configuration button with LED display. The power supply is provided by the included three AAA LR03 1.5V batteries, with the configuration retained during battery replacement.

This motion detector is designed for lighting control in commercial buildings and residential homes by detecting moving individuals. The detection range is 220° with anti-creep protection and a maximum range of 16 m at a recommended mounting height of approximately 2.5 m. A horizontal lens adjustment of +/- 80° and a vertical lens adjustment of +90°/-30° are possible. Detection is achieved using Fresnel lenses, and the monitoring area can be limited using the included masks.

The setting of the time delay and brightness level can be done directly on the device or via an optional remote control or KNX objects. Sensitivity can be adjusted from 20% to 100%. Mounting on walls and ceilings is possible, as well as on corners with an optional mounting adapter.
