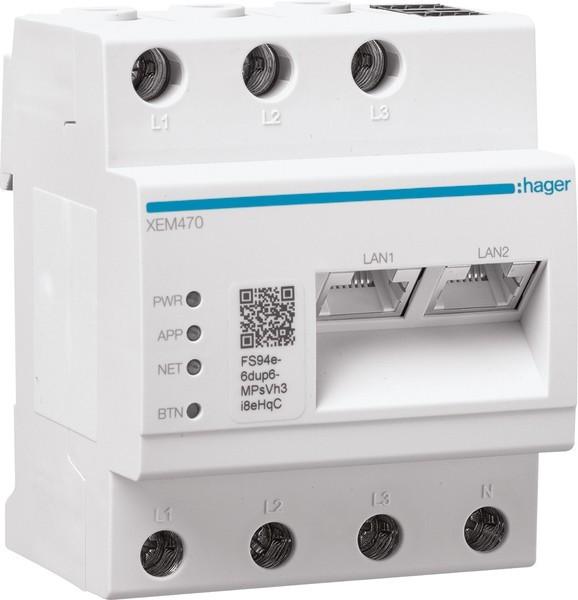

Hager Energy Management Controller XEM470

Manufacturer: Hager
Designation: Energy Management Controller flow
Type: XEM470
Mounting Type: DIN Rail
Max. Number of Meters: 3
Primary Energy Types: Electricity
Data Forwarding Interfaces: Ethernet
Data Reception Interfaces: Other
Nominal Voltage: 230 V
Nominal Frequency: 50-65 Hz
Housing Width: 70 mm
Suitable for Protection Class (IP): IP20

The energy manager, designed as a rail-mounted device, serves as the central control unit in the flow system for the intelligent optimization of self-consumption and management of energy flows. The energy manager, intended for mounting on a DIN rail, is the central control unit for regulating up to 3 charging stations and prevents overload of the grid connection. The device can be used for direct measurement of currents per phase up to 63 A. It features integrated overload protection for the home installation to prevent power outages, load management to avoid unbalanced loads due to significantly uneven loading of the phases during charging processes, and intelligent management of energy storage and self-consumption for greater autonomy in home energy use.
