HellermannTyton Connecting sleeve
Product details
HellermannTyton connecting sleeve i-3 / SF-PUR-BK
Manufacturer: HellermannTyton
Designation: Connecting sleeve 5x95
Type: i-3 / SF-PUR-BK
Rated voltage U0/U (Um): 0.6/1 (1.2) kV
Version: Cast resin
Insulation material: Plastic
For connecting paper and plastic insulated cables: No
Conductor cross-section: 10...35 mm²
Mining approval: No
With concentric shielding: No
Suitable for: N(A)YY
Connection accessories supplied: Without
Halogen-free: No
Further details:

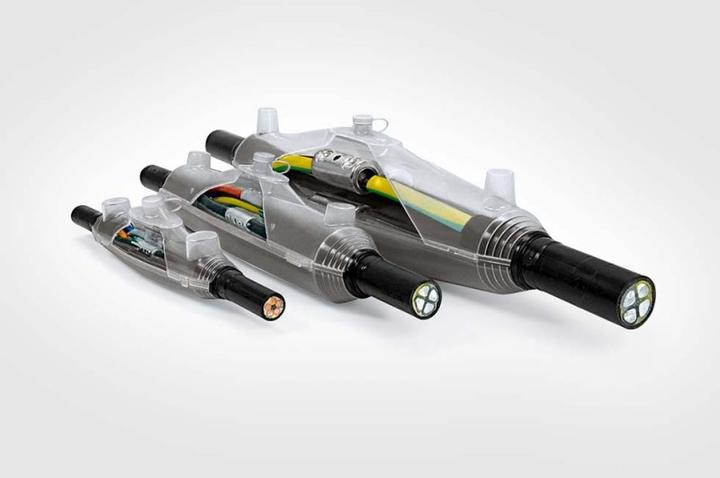

Two-part, impact-resistant, transparent moulded shells
Compact dimensions
Defined cable diameters on the moulded shells
SF system
Immediately ready for use
Longitudinally and transversely watertight fittings can be cast under the influence of water
Connectors for AI and Cu conductors
Secure connection for up to 5-core cables
The RELICON Premium connection fittings are also equipped with an integrated connector block. They are suitable for electrical installations in the low-voltage network. They are used universally for plastic cables and conductors made of PVC, PE, EPR, and XLPE such as N(A)YY and NYCWY.
Areas of application: Connections and joints in industrial buildings, energy supply in the ground, outdoors, and in water.
EAN: 4031026627007.
Item number | 36777294 |
Manufacturer | HellermannTyton |
Category | Cable joints |
Manufacturer no. | 435-12104 |
Release date | 28.6.2023 |
Material | Plastic |
Material group | Plastic |
Cable connection type | Jointing clamp |
Suitable for cable cross-section | 35 mm² |
Country of origin | Poland |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Without |
Items per sales unit | 1 x |
Product Safety |
