Hensel junction box WP 0402 B
Manufacturer: Hensel
Designation: Junction box 1.5-2.5 qmm 3-phase
Type: WP 0402 B
Max. conductor cross-section: 4 mm²
Equipment: Terminal
Shape: Square
Mounting type: Wall/ceiling mounting
For conduit diameter: Other
Entry from rear: No
Length: 104 mm
Width: 104 mm
Depth: 70 mm
Bayable: No
Number of entries: 7
Type of housing feed-through: Pre-stamped
Material: Plastic
Halogen-free: Yes
Surface protection: Untreated
Color: Black
Protection class (IP): IP68
Cover design: Other
Cover fixing: Screwed
Pourable: Yes
Supplied with potting compound: Yes
Sealable: Yes
Rated insulation voltage Ui: 690 V
Functional integrity: None
With shielding: No
Weatherproof: Yes
Operating temperature: -25 to 70 °C
Explosion-proof version: No
For Ex zone gas: Without
For Ex zone dust: Without
Hensel cable junction box WP 0402 B: more details

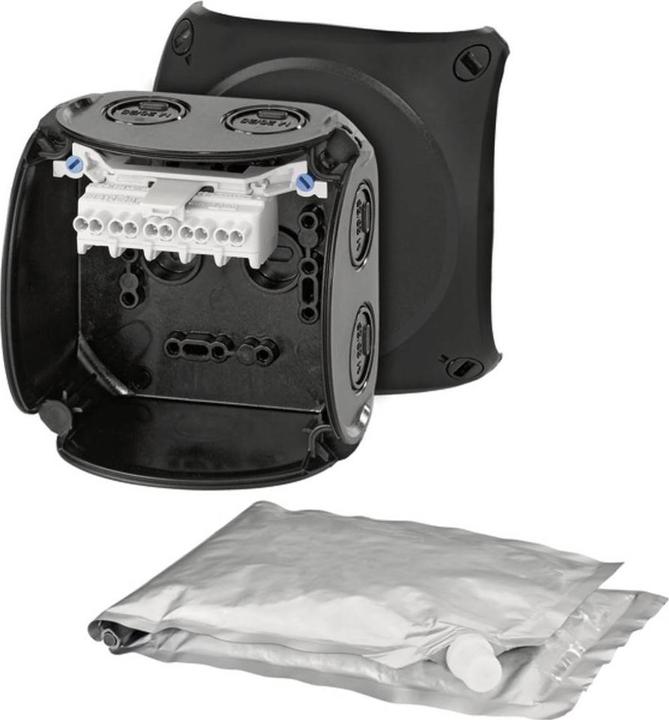

Cable junction box made of high-quality thermoplastic for potting for a watertight connection. Suitable for unprotected installation outdoors where there is a risk of condensation and/or ingress of liquids, for installation in the ground without live loads. Can be used for heating cable/heating tape up to a maximum of 70 °C surface temperature. For subsequent installations or tests, the cover can be removed and the sealing compound removed. Lid fastening via quick-release fasteners. With external lugs for fastening. With terminals up to 2.5 mm², 5-pole. Cable entry via metric pre-stamping in housing walls. Add-on cable glands available as accessories. Supplied with potting compound and sealing plugs.
Junction box type | Junction box |
Height | 104 mm |
Width | 104 mm |
Protection type (IP code) | IP68 |
Length | 70 mm |
Item number | 17941494 |
Manufacturer | Hensel |
Category | Junction box |
Manufacturer no. | 62000100 |
Release date | 16.12.2021 |
Colour | Black |
Exact colour description | Black |
Material group | Plastic |
Material | Polycarbonate (PC) |
Junction box type | Junction box |
mounting style | Adhesive, Duvet |
Area of use | Inside |
Protection type (IP code) | IP68 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 pcs. |
Height | 104 mm |
Width | 104 mm |
Length | 70 mm |
Diameter | 70 mm |
