Hensel HEN Mi PV 2121 Generator junction box
Product details

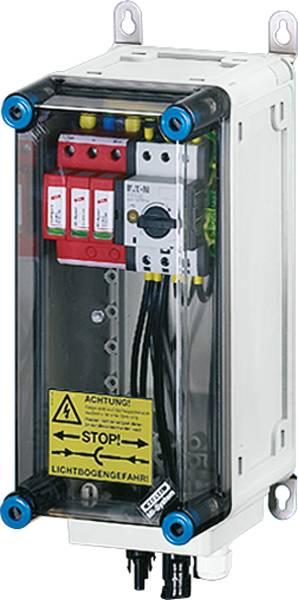

The Hensel Mi PV 2121 generator connection box is a high-quality solution for the safe and efficient connection of photovoltaic systems. This junction box is specifically designed for use in PV systems up to 1000 V d.c. and meets the requirements of IEC 61439. It comes fully assembled and pre-wired, allowing for easy installation. The housing is made of protective insulated thermoplastic and offers reliable protection against dust and water with an IP 65 rating. The box is suitable for protected outdoor installation and is characterized by its UV resistance. Wall mounting is achieved through robust external brackets made of stainless steel, enhancing the product's durability and stability. Equipped with a Type 2 DC surge arrester and a DC generator disconnector, the box enables a safe and efficient connection of two PV strings to a single inverter input. The plug connections are compatible with MC4 connectors, and the lid locks are designed for tool-operated handling.
- IP 65 rating for reliable protection against dust and water
- Fully assembled and pre-wired for easy connection
- UV resistant and suitable for outdoor use
- Equipped with Type 2 DC surge arrester and generator disconnector
- Wall mounting via external stainless steel brackets.

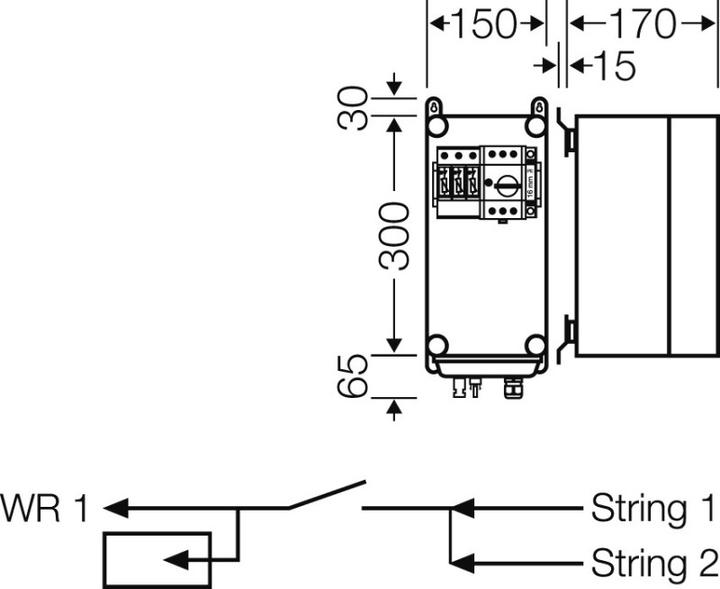

Junction box type | Junction box |
Height | 365 mm |
Width | 150 mm |
Protection type (IP code) | IP65 |
Length | 170 mm |
Item number | 23984987 |
Manufacturer | Hensel |
Category | Junction box |
Manufacturer no. | 4012591114673 |
Release date | 16.11.2022 |
Colour | Grey |
Exact colour description | Grey |
Material group | Plastic |
Material | Plastic |
Junction box type | Junction box |
mounting style | Adhesive, Duvet |
Area of use | Inside |
Protection type (IP code) | IP65 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 pcs. |
Height | 365 mm |
Width | 150 mm |
Length | 170 mm |
