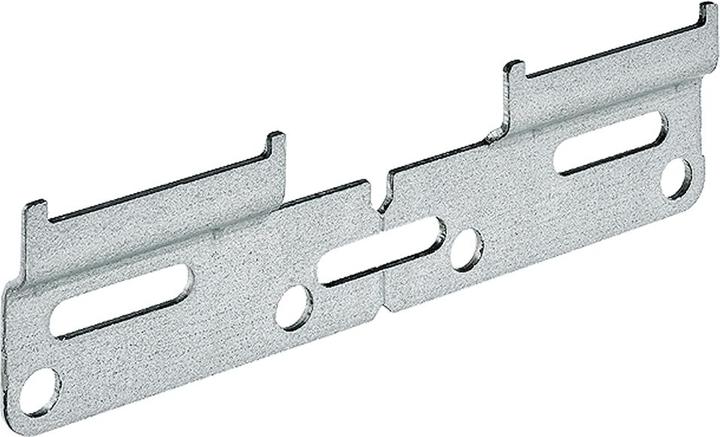

Universal suspension rail type B for cabinet hangers SAH 15, SAH 116, SAH 130, SAH 215/216. Load capacity: 150 kg per cabinet. Fastening: with 2 special screws Ø 5.5 x 50 mm in the area of each cabinet hanger. For cabinet widths of 900 mm and above, an additional special screw Ø 5.5 x 50 mm must be placed centrally behind each cabinet. Use special fastening screws. Length: 3000 mm. Features slotted holes and is made of galvanized steel.

Notes: The hanging rail does not have anti-slip protection. When moving the wall cabinet, the cabinet can slide off the hanging rail and fall. Special lengths are available upon request. Please order screws for fastening separately.

Instructions for the load-bearing capacity of cupboard hangers and accessories: The following principles must be observed regarding the load-bearing capacity of cupboard hangers and accessories. Both the furniture design and the material and manufacturing quality of the furniture are beyond our control. We also have no influence on the quality of the wall materials. The suspension hooks we offer, in conjunction with dowels, are intended for use in solid bricks, sand-lime bricks, concrete, or clinker bricks. A hole with a diameter of 8 mm must be drilled into the solid stone material, into which the plastic dowel is driven flush. The minimum hook screw-in depth corresponds to the hook length minus 10 mm. For fastening to other wall materials, commercially available special fastening elements must be used. Dowels and screws must be matched to each other. Dowel screws must not be replaced by normal chipboard screws.

Fastening of hanging rails: with 2 special screws Ø 5.5 x 50 mm in the area of each cupboard hanger. For cupboard widths of 900 mm and above, an additional special screw Ø 5.5 x 50 mm must be placed in the center behind each cupboard (type A, type B, and type H). It is the responsibility of the furniture manufacturer or dealer to ensure that the furniture placed on the market complies with the requirements of EN 14749.
