Bals Elektrotech Surface-Mounted Socket, Tilted 63A 120274. This surface-mounted socket is designed for 63A 5p 400V with a tilt of 6h and has an IP67 rating. The IEC current rating is 63 A, and the voltage according to EN 60309-2 is 400 V (50/60 Hz) in red. It features 5 poles and a time position of 6h. The identification color is red (RAL 3000), and it has an IP67 protection class.

The connection method is tool-free with an angled plug direction. The cable connection is of a different type, and the material is plastic. The contact material is CuZn, and the surface treatment of the contacts is nickel-plated.

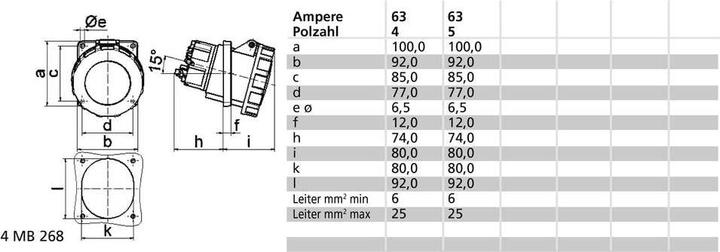

This socket has a vertical flange dimension of 100 mm and a horizontal flange dimension of 92 mm, with a vertical hole spacing of 85 mm and a horizontal hole spacing of 77 mm.

Additional details include a quick connection TE tilted 63A 5p (3P+N+PE) 400V (200/346 to 240/415V) with a frequency of 50 and 60Hz. The contact carrier is made of highly heat-resistant material, and the contacts are made of nickel-plated brass. The maximum conductor cross-section is 25.0 mm², and the housing material is polyamide.

The connection technology includes tool-free spring clamp technology with frame inputs and Contex contact. The device features a foldable cover in red (RAL 3000), a bayonet lock in gray (RAL 7035), and a housing in gray (RAL 7035). The device dimensions are height 120 mm, width 111 mm, and depth 168 mm. The tilt is 15°.
