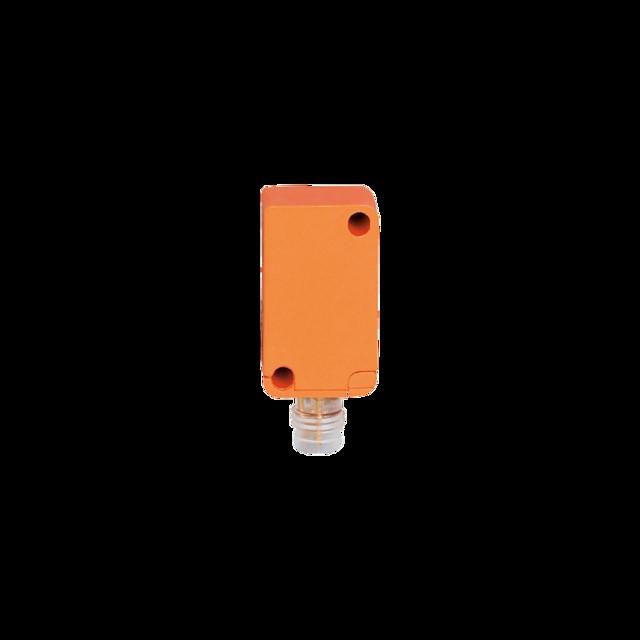

Ifm Electronic Sensor, ind., M8x1 IS5035
Manufacturer: Ifm Electronic
Description: Sensor, ind., M8x1 1S, for: 800Hz, DC, IP67
Type: IS5035
Width of the sensor: 10.2 mm
Height of the sensor: 27.8 mm
Length of the sensor: 36.8 mm
Mechanical installation condition for the sensor: flush
Switching distance: 2 mm
Suitable for safety functions: no
Type of switching function: normally open
Type of switching output: PNP
Type of electrical connection: M8 connector
Number of semiconductor outputs with signaling function: 1
Type of actuation: metallic target
Type of interface: none
Type of interface for safety-related communication: none
Housing design: rectangular
Coating of housing: other
Cascadable: no
Max. output current at the safe output: 200 mA
Supply voltage: 10..36 V
Type of voltage: DC
Switching frequency: 800 Hz
With monitoring function for downstream devices: no
Material of the housing: plastic
Pressure-resistant: no
Explosion protection category for gas: none
Explosion protection category for dust: none

Ifm Electronic Sensor, ind., M8x1 IS5035: further details
Inductive sensors, inductive sensor, rectangular, plastic, switching distance: 2 mm, flush mountable, 3-wire, DC PNP, operating voltage: 10...36 V DC, current consumption: 15 mA, normally open, connector, M8 connector, housing material: PBT, EAN: 4021179138178.
