Intercable Crimp cable lug ICQ65 DIN46234 4-6qmm M5 tin-plated

Ratings
BrandMore from Intercable
Currently out of stock
Free shipping starting at 30,–

Product details

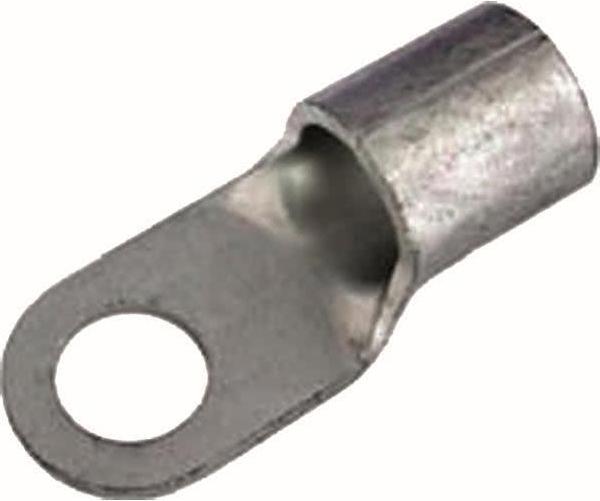

Intercable Tools crimp cable lug ICQ65
Manufacturer: Intercable Tools
Designation: Crimp cable lug 4-6 qmm M5 galv.
Type: ICQ65
Connection thread dimension (metric): 5
Flange form: Ring form
Conforms to DIN: Yes
Insulation: Without
Nominal cross-section: 4...6 mm²
Tape material: No
Sleeve shape: Short
Suitable for solid conductors: No
Suitable for stranded conductors: Yes
Suitable for fine-stranded conductors: Yes
Suitable for high temperatures (up to 650 °C): No
Suitable for enamelled wire: No
Suitable for round conductors: Yes
Suitable for flat conductors: No
For tension-resistant connections: No
Material: Copper
Surface protection: Tin-plated
Halogen-free: Yes
Maximum current (Imax): 33 A
Pin dimension (imperial): 3/16 inch
Total length: 15 mm
Intercable Tools crimp cable lug ICQ65: More details for stranded and fine-stranded conductors, crimping area hard soldered.

Key specifications

Item number
31249654

General information

Manufacturer
Intercable
Category
Cable joints
Manufacturer no.
180407
Release date
3.3.2023

Colour

Exact colour description
Silver
Colour
Silver

Material

Material
Copper
Material group
Metal

Cable connection Properties

Cable connection type
Cable lugs
Clamps diameter
4 mm
Suitable for cable cross-section
6 mm²

Origin

Country of origin
Japan

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
100 x

Product dimensions

Length
15 mm
Width
9 mm
Height
5 mm
