Intercable Tools Cutting Head PS50F
Manufacturer: Intercable Tools
Designation: Cutting head hydraulic max. 50mm
Type: PS50F
Design/operation: Hydraulic cutting head
Suitable for max. cable diameter: 45 mm
Suitable for stranded conductors: Yes
Cable diameter: 45 mm
Suitable for fine stranded conductors: No
Suitable for solid conductors: Yes
Suitable for steel wire braiding: Yes
Total length: 313 mm
Cutting head replaceable: No
Dies replaceable: Yes
With stripping function: No
Insulated: No
Protective insulation 1000 V: No
With impact protection: No
VDE-tested: No

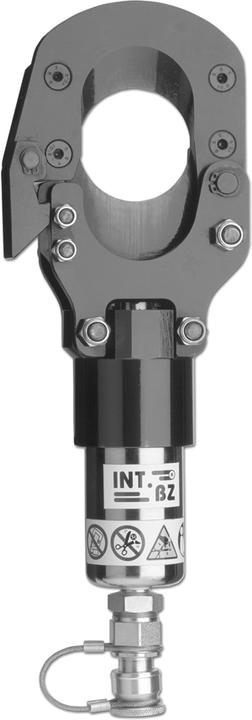

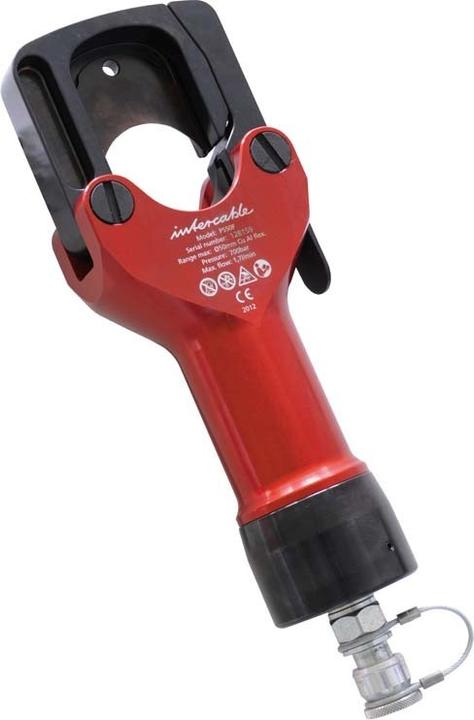

Intercable Tools Cutting Head PS50F is suitable for cutting fine and stranded aluminium cables and copper cables without steel armouring up to a maximum diameter of 50mm. It features a light and compact construction, a cutting head with flap lock and blade guide, and a quick release nipple with dust protection flap. The cutting range diameter is 50mm, with a cutting force of 60kN and an operating pressure of 700 bar.
