Jumo Mantle Thermocouple 00068443

Manufacturer: Jumo
Designation: Mantle Thermocouple 500 mm, installation length
Type: 00068443
For gas and oil burners: no
Suitable for other application areas: yes
Length: 50 cm
Sensor class: Class 2
Temperature: -200 to 1200 °C
With pocket tube: no

The insertable mantle thermocouple with a 2.5 m long compensating cable is suitable for temperature measurement in liquid and gaseous media using the Seebeck effect. Its shock-resistant design ensures a long service life. The good heat transfer between the mantle and thermocouple allows for short response times and high measurement accuracy.

Due to its properties, the mantle thermocouple is often used in chemical plants, power plants, pipelines, engine construction, and test benches. The single thermocouple 1x NiCr-Ni K according to DIN EN 60584 (Class 2) is designed for temperatures from -200 to +1200 °C. The protective tube is made of Inconel 2.4816 material.

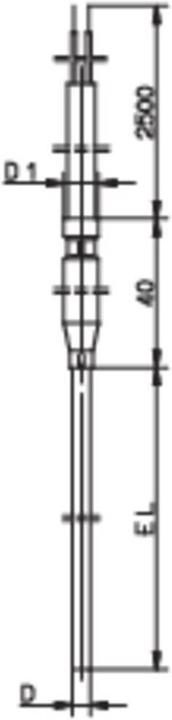

For electrical connection, a silicone-insulated compensating cable is used, which withstands ambient temperatures from -50 to +180 °C. The connection ends are equipped with ferrules. The protective tube dimensions are 3.0 x 500 mm. The minimum bending radius is 5× outer diameter. The thermocouple is factory-insulated against the mantle.
EAN: 4053877003397.
