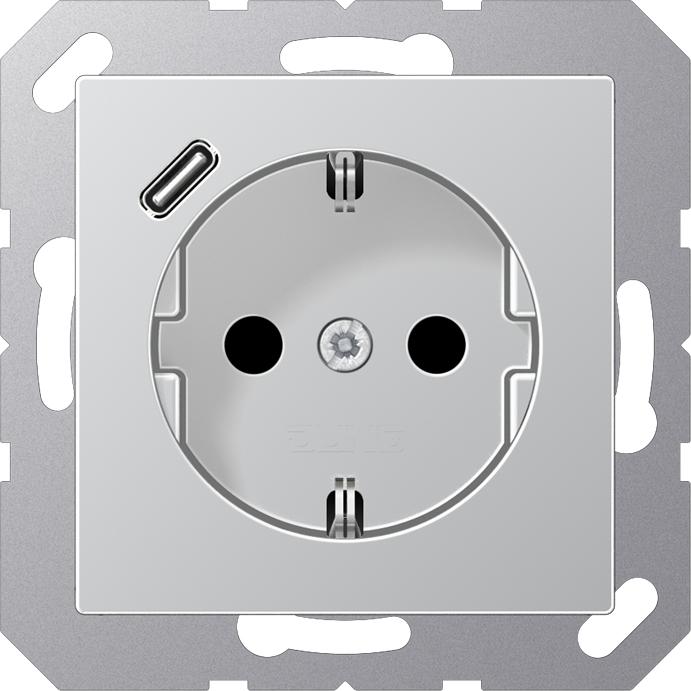

JUNG A1520-18CAL with USB type C socket outlet SCHUKO
Price in EUR including VAT
Delivered between Tue, 14.10. and Thu, 16.10.
free shipping
Product details
The A1520-18CAL built-in socket from JUNG combines functionality with modern design. This socket is equipped with a USB Type C port that offers a fast charging function, allowing devices to be charged efficiently. The integrated enhanced touch protection provides additional safety, while the spring terminals enable easy and secure connections for rigid and untreated flexible conductors up to 2.5 mm². Installation is done in a device box according to the DIN 49073 standards, making the setup easier. Made from painted thermoplastic, the socket is both robust and aesthetically pleasing. With a mounting depth of 48 mm and an IP20 protection rating, it is ideal for indoor use.
- Integrated enhanced touch protection (Safety Plus)
- Fast charging function via USB Type C
- Spring terminals for easy installation
- Connection terminals according to DIN VDE 0620
- Installation in device box according to DIN 49073.
Number of cans | 1 x |
Socket type | CEE 7/3 |
Area of use | Inside |
Exact colour description | Aluminium |
Mounting type | Flush-mounted |
Item number | 32313054 |
Colour | Silver |
Exact colour description | Aluminium |
Material group | Plastic |
Material | Lacquered thermoplastic |
Socket type | Built-in socket |
Series | Standard Due |
Socket type | CEE 7/3 |
Number of cans | 1 x |
Protection type (IP code) | IP20 |
Nominal current | 16 Ah |
Nominal voltage | 250 V |
Area of use | Inside |
Mounting type | Flush-mounted |
Mounting type | Claw fastening, Screw fastening |
connector type | Plug terminal |
Additional properties | Contact protection, Halogen-free |
Smart Home | Not compatible |
Requires Smart Home Hub | No |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Stack depth | 4.80 cm |
Width | 5.50 cm |
Height | 5.50 cm |
