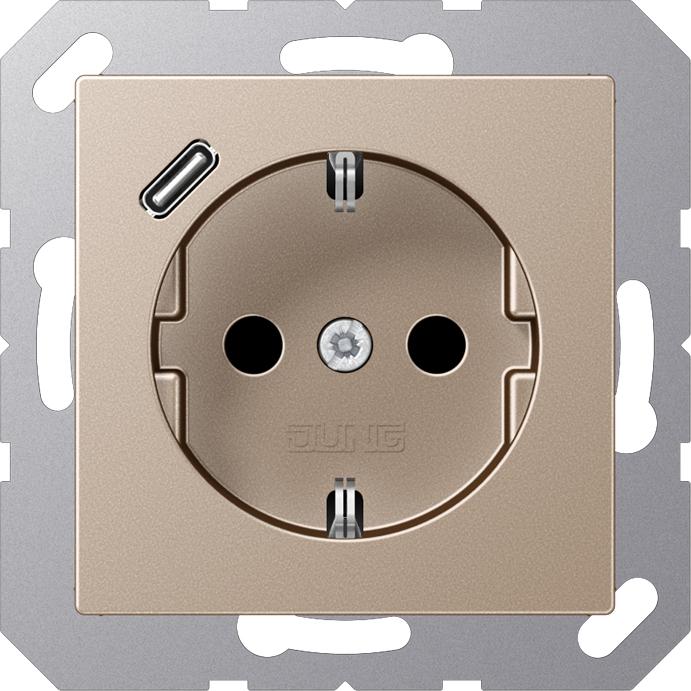

JUNG A1520-18CCH w.USB Type C socket outlet SCHUKO
Product details
The A1520-18CCH built-in socket from JUNG combines functionality with modern design. This socket features an integrated USB Type C port that offers fast charging, allowing mobile devices to be charged efficiently. The enhanced touch protection (Safety Plus) provides additional safety for everyday use. The socket is designed for installation in a device box and meets the requirements of DIN VDE 0620. It is made from high-quality, painted thermoplastic, ensuring durability and an appealing appearance. With a minimum installation depth of 57 mm, it is suitable for various installation scenarios and offers easy connection via spring terminals for rigid and flexible conductors up to 2.5 mm². This socket is a practical solution for modern living and working environments.
- Integrated USB Type C port with fast charging function
- Enhanced touch protection (Safety Plus)
- Spring terminals for easy installation
- Made from high-quality, painted thermoplastic
- Installation in device box according to DIN 49073.
Number of cans | 1 x |
Socket type | CEE 7/3 |
Exact colour description | White |
Mounting type | Flush-mounted |
Item number | 32313052 |
Colour | White |
Exact colour description | White |
Material group | Plastic |
Material | Lacquered thermoplastic |
Socket type | Built-in socket |
Socket type | CEE 7/3 |
Number of cans | 1 x |
Protection type (IP code) | IP20 |
Nominal current | 16 Ah |
Nominal voltage | 250 V |
Mounting type | Flush-mounted |
Mounting type | Claw fastening, Screw fastening |
connector type | Plug terminal |
Additional properties | Contact protection |
Smart Home | Not compatible |
Requires Smart Home Hub | No |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Stack depth | 5.70 cm |
Width | 5.50 cm |
Height | 5.50 cm |
