JUNG Emergency set aws compl.with frame NRS LS 0834 WW

Price in EUR including VAT
Delivered between Sat, 12.7. and Tue, 15.7.
10 pieces in stock at supplier
free shipping

Product details

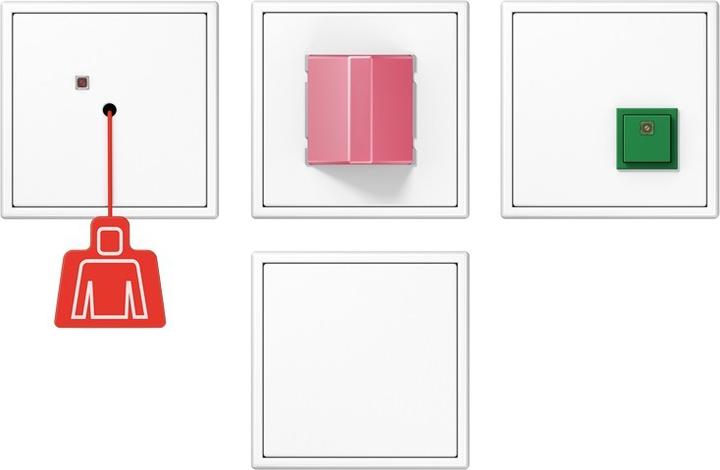

Consists of a pull switch, call module, reset button, and power supply (screw mounting, without mounting claws) complete with a single frame. The JUNG emergency call system is designed for emergency calls in accessible toilet facilities. It meets the safety requirements according to DIN VDE 0834. The emergency call system is modular in design. The following four components are available together as a complete emergency call set:

Pull switch: An emergency call can be triggered in the bathroom/toilet via an easily accessible pull cord. The pull switch can also be installed in the middle of the room on the ceiling to be easily reachable for those in need of assistance. A successful call activation is indicated by a red reassurance lamp on the switch.

Call module: The call module can be installed outside next to the toilet door or hallway door, for example. An activated emergency call is visually signaled here by a red LED and acoustically by a buzzer, 90 dB(A). Both signals can be switched from continuous light/continuous tone to flashing light/pulsating tone.

Reset button: In the same room where the pull switch is located, the reset button is installed next to the door. The assisting personnel can deactivate the triggered call there.

Power supply: For powering the emergency call system with DC 24 V. Service room unit, service room terminal, and call button are available separately. The service room unit can be installed, for example, in a staff or reception area. A green button indicates presence, while a yellow button suppresses the acoustic emergency call signal of the call module for 20 seconds.

The components of the JUNG emergency call system are complemented with frames from the AS / A, CD, or LS series, allowing for a uniform design throughout the building. The complete emergency call set already includes the frames. For expanding a system, the components are also available individually.

Key specifications

Colour
White
Width
70 mm
Item number
32456581

General information

Manufacturer
JUNG
Category
Accessories switch programme
Manufacturer no.
NRSLS0834WW
Release date
16.1.2023

Colour

Colour
White
Exact colour description
White Ral 9016

Switch programme properties

mounting style
Screws

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Width
70 mm
Height
70 mm
