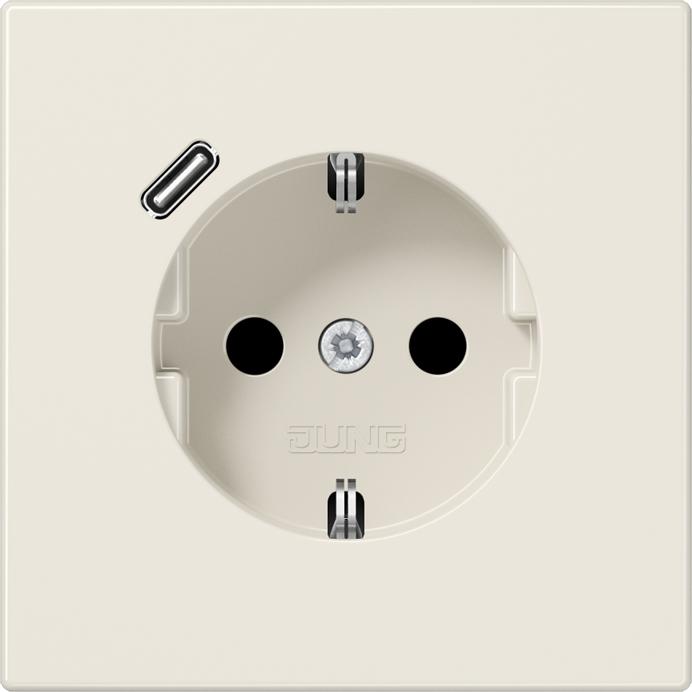

JUNG LS1520-18C with USB type C socket outlet SCHUKO
Product details
The LS1520-18C built-in socket from JUNG is a modern solution for indoor power supply. It combines a conventional SCHUKO socket with a practical USB Type C port that offers fast charging functionality. This socket is ideal for installation in flush-mounted boxes and meets the requirements of DIN VDE 0620. With its enhanced touch protection (Safety Plus), it provides additional safety for everyday use. The use of high-quality thermoplastic ensures durability and resilience. The socket is suitable for rigid and untreated flexible conductors up to a cross-section of 2.5 mm² and allows for easy installation thanks to the spring terminals. Its installation depth of 48 mm and compact dimensions make it a practical choice for various applications.
- Integrated enhanced touch protection (Safety Plus)
- USB Type C port with fast charging function
- Spring terminals for rigid and flexible conductors up to 2.5 mm²
- Installation in device box according to DIN 49073.
Number of cans | 1 x |
Socket type | CEE 7/3 |
Area of use | Inside |
Exact colour description | Cream white (electric white) |
Mounting type | Flush-mounted |
Item number | 32313126 |
Colour | White |
Exact colour description | Cream white (electric white) |
Material group | Plastic |
Material | Thermoplastic resin |
Socket type | Built-in socket |
Socket type | CEE 7/3 |
Number of cans | 1 x |
Protection type (IP code) | IP20 |
Nominal current | 16 Ah |
Nominal voltage | 250 V |
Area of use | Inside |
Mounting type | Flush-mounted |
Mounting type | Claw fastening, Screw fastening |
connector type | Plug terminal |
Additional properties | Contact protection |
Smart Home | Not compatible |
Requires Smart Home Hub | No |
Configuration effort | Manual configuration |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Stack depth | 4.80 cm |
Width | 7 cm |
Height | 7 cm |
