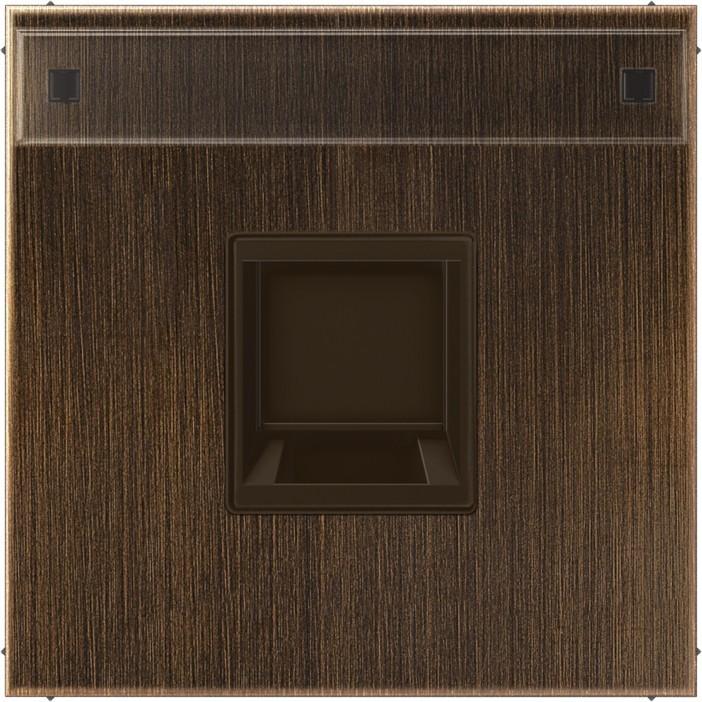

Jung cover 1-fold ME1969-15NAWEAT

Manufacturer: Jung
Designation: Cover 1-fold for MJ NA WE TE connection
Type: ME1969-15NAWEAT
Assembly: Other
Use: Modular jack
Support ring: Yes
With dust protection: Yes
With hinged cover: No
Outlet direction: Straight
Labelling field: With labelling field
With imprint: No
Mounting type: Surface-mounted
Material: Metal
Material grade: Other
Halogen-free: Yes
Antibacterial treatment: No
Surface protection: Other
Finish: Matt
Colour: Brass
RAL number (similar): 8014
Transparent: No
Mounting type: Clamp mounting
With sockets/couplings: No
Suitable for number of sockets/couplings: 1
With strain relief: No
Enclosure shielded: No
Luster terminal: No
With illumination: No
Suitable for protection class (IP): IP20
Device width: 70 mm
Device height: 70 mm

Jung cover 1-fold ME1969-15NAWEAT: further details (complete with support ring, screw fixing)
Cover with return spring for modular jack sockets TE Connectivity (Tyco Electronics / AMP NETCONNECT) for cable diameter max. 10 mm:

• EMT Cat. 5e, 180°
• EMT Cat. 5e, 90°

for cable diameter max. 6.5 mm:

• EMT Cat. 5e, 180°
• EMT Cat. 5e, 90°

Toolless Jack Cat. 3 unshielded:
Toolless Jack Cat. 5e unshielded:
Toolless Jack Cat. 5e shielded:
Toolless Jack Cat. 6 unshielded:
Toolless Jack Cat. 6 shielded:
MTRJ fibre optic jack:
Deep box (minimum 62 mm) required for 1 jack.
