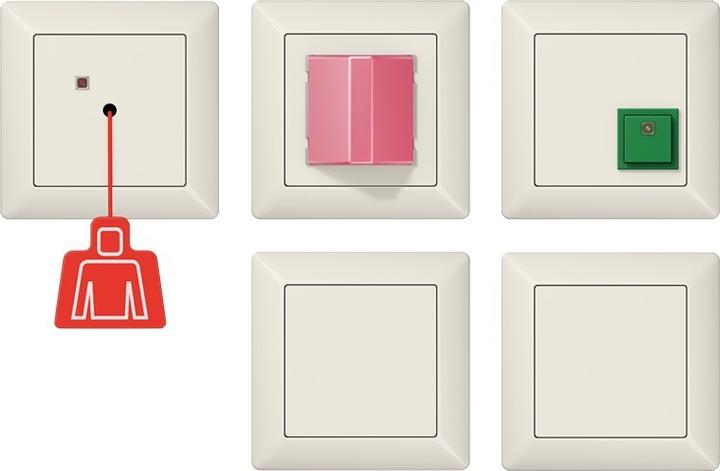

Jung emergency set NRS AS 0834-2 Manufacturer :Jung Designation :Emergency set Type :NRS AS 0834-2 Finish :Complete set Colour :white RAL number (similar) :1013 Voltage type :DC Device width :55 mm Device height :55 mm Jung emergency set NRS AS 0834-2: further details consists of pull cord push-button, call module, cancel push-button, power supply unit and UPS module (screw fixing, without fixing claws) complete with frame 1gang Assembly note UPS module: use deep box Emergency call system The JUNG emergency call system is used to call for help in WC facilities suitable for the disabled. It complies with the safety requirements according to DIN VDE 0834. The emergency call system has a modular design. The following five components are available together as a complete emergency call set: Pull cord buttonAn emergency call can be triggered in the bathroom/WC via an easily accessible pull cord. The pull-cord button can also be installed in the middle of the room on the ceiling to be easily accessible for people in need of help. A successful call triggering is signalled by a red reassurance lamp on the push-button. Call moduleThe call module can be installed e.g. outside next to the WC door or corridor door. A triggered emergency call is signalled here visually by a red LED and acoustically by a buzzer, 90 dB(A). Both signals can be optionally switched from continuous light/continuous tone to flashing light/pulsing tone. Shut-off buttonThe shut-off button is installed next to the door in the same room as the pullcord button. The assisting personnel can switch off the raised call there. Power supply unit for power supply of the emergency call system with DC 24 V UPS module for bridging power failures Duty room unit, duty room terminal and call button are available separately. The duty room unit can be installed in a staff or reception room, for example. A green button marks presence, a yellow button suppresses the acoustic emergency call signal of the call module for 20 seconds. The components of the JUNG emergency call system are supplemented with frames from the AS / A, CD or LS series, so that a uniform design is possible throughout the entire building. The frames are already included in the complete emergency call set. To expand a system, the components are also available individually. , EAN: 4011377173583.
