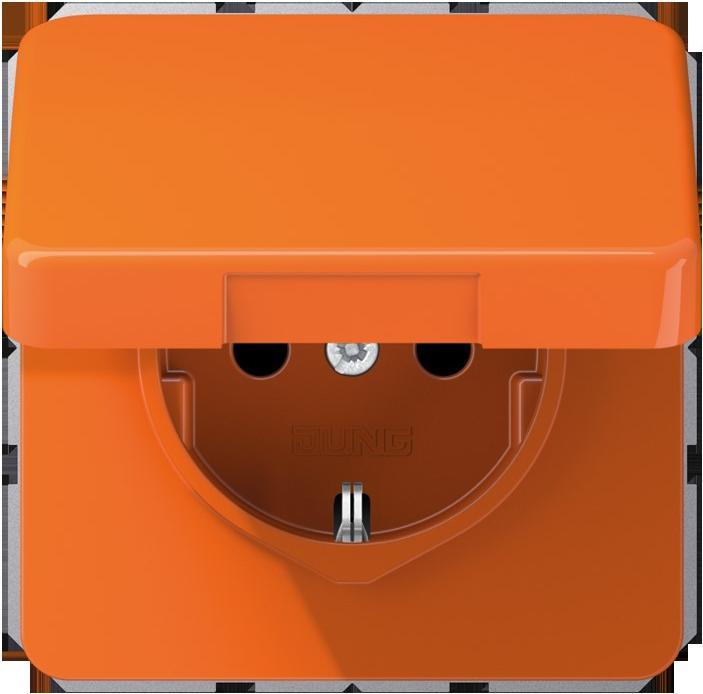

The SCHUKO socket from JUNG is a reliable and safe solution for electrical connections. It is designed for a nominal current of 16 A and a voltage of 250 V, featuring a robust construction made of thermoplastic. This socket is equipped with a hinged cover supported by a return spring to provide additional protection. The connection terminals meet the requirements of DIN VDE 0620 and allow for easy installation for both rigid and flexible conductors up to a cross-section of 2.5 mm². The integrated grounding rail ensures a secure connection and enhances safety during use. With its compact dimensions of 67 x 67 mm, it is versatile and suitable for various applications.
Exact colour description | Orange |
Mounting type | Flush-mounted |
Item number | 52541780 |
Colour | Orange |
Exact colour description | Orange |
Material | Thermoplastic resin |
Socket type | Socket insert |
Nominal current | 16 Ah |
Nominal voltage | 250 V |
Mounting type | Flush-mounted |
Mounting type | Claw fastening |
connector type | Screw terminals |
Additional properties | Hinged cover |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Width | 6.70 cm |
Height | 6.70 cm |
