JUNG SCHUKO socket outlet 16A 250V CD 1520 NAKLSL O
Price in EUR including VAT
Delivered between Thu, 16.10. and Sat, 18.10.
free shipping
Product details

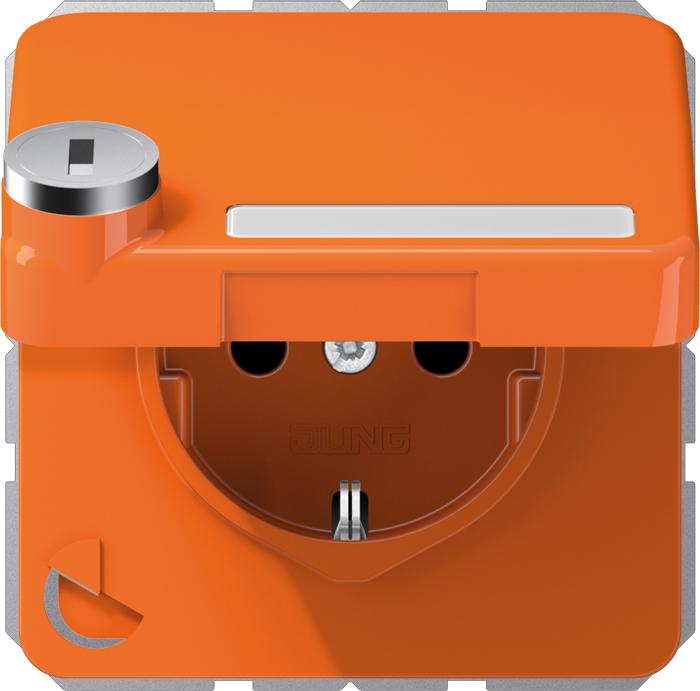

Protective contact socket, orange (for ZSV) with hinged lid (with return spring) and label field 9 x 39 mm with safety lock (24 different closures) and integrated increased touch protection (Safety Plus). With spring clamps for rigid and untreated flexible conductors up to 2.5 mm². Connection terminals according to DIN VDE 0620. The load ring, claws, and claw screws are integrated into the protective measure via a grounding rail. Replacement part: transparent cover with insert Art. No.: LS 90 NA. Replacement key Art. No.: 802 SL to 825 SL (please specify the corresponding lock number when ordering, e.g., 813 SL!). Material: thermoplastic. Dimensions (W x H): 67 x 67 mm.
Number of cans | 1 x |
Socket type | CEE 7/3 |
Area of use | Inside |
Exact colour description | RAL 2004 |
Mounting type | Flush-mounted |
Item number | 32323623 |
Manufacturer | JUNG |
Category | Sockets |
Manufacturer no. | CD1520NAKLSLO |
Release date | 18.10.2022 |
Colour | Orange |
Exact colour description | RAL 2004 |
Material group | Plastic |
Material | Thermoplastic resin |
Socket type | Built-in socket |
Socket type | CEE 7/3 |
Number of cans | 1 x |
Protection type (IP code) | IP44 |
Nominal current | 16 Ah |
Nominal voltage | 250 V |
Area of use | Inside |
Mounting type | Flush-mounted |
Mounting type | Claw fastening, Screw fastening |
connector type | Plug terminal |
Additional properties | Contact protection, Hinged cover |
Smart Home | Not compatible |
Requires Smart Home Hub | No |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Stack depth | 6.70 cm |
Length | 3 cm |
Width | 6.70 cm |
Height | 6.70 cm |
Product Safety |
