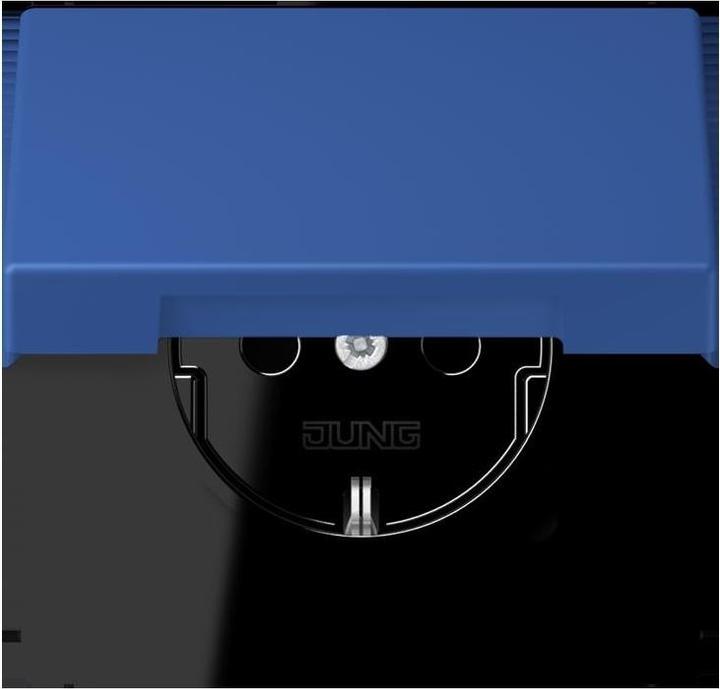

Jung Schuko socket outlet LC 1520 BFKL253

Manufacturer: Jung
Designation: Schuko socket outlet
Type: LC 1520 BFKL253
Version: Schuko
Protective contact: Yes
Protective earth contact round: No
Number of active contacts (round): 2
With signal lamp: No
With built-in USB power supply: No
Number of units: 1
Number of phases: 1
Connection type: Plug-in terminal
With hinged cover: Yes
With increased touch protection: No
Text field/inscription area: No
Colour: Blue
Metallic colour: No
Transparent: No
Lockable: No
Ejector mechanism: No
With function light: No
With orientation light: No
Overvoltage protection: No
Residual current protection: No
With microfuse: No
Special power supply: Without special power supply
Mounting type: Flush-mounted
Mounting type: Claw/screw mounting
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Finish: Matt
Antibacterial treatment: No
With on/off switch: No
With loop-through function: No
Twisted central insert: No
Rated current: 16 A
Rated voltage: 250 V
Suitable for protection class (IP): IP20

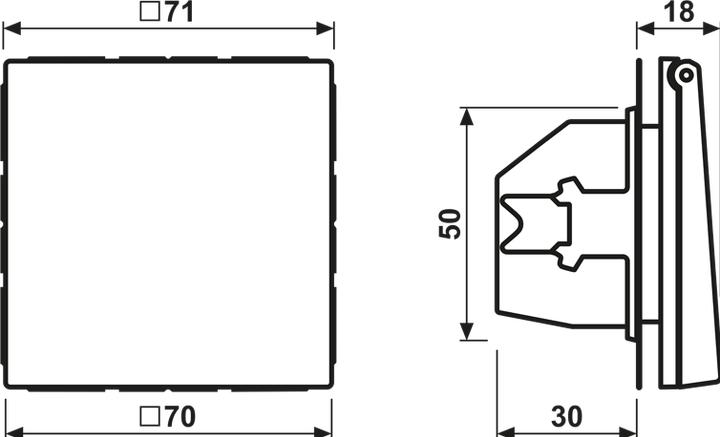

Device width: 70 mm
Device height: 70 mm
Device depth: 0 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No
For "difficult conditions" (according to VDE): No

Further details: Protective contact socket outlet, blue with hinged cover (with return spring) with spring terminals for rigid and untreated flexible conductors up to 2.5 mm². Connection terminals to DIN VDE 0620. Support ring, claws, and claw screws are integrated into the protective measure via an earthing bar. Material: Thermoplastic painted. Dimensions (W x H): 70 x 70 mm. EAN: 4011377226203.
