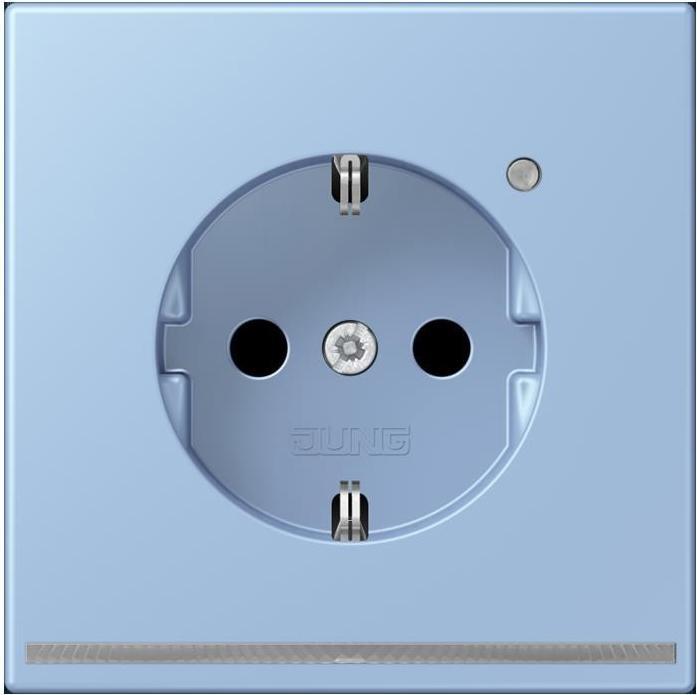

Jung Schuko socket outlet LC 1520-O LNW207

Manufacturer: Jung
Designation: Schuko socket outlet
Type: LC 1520-O LNW207
Design: Schuko
Earth contact: Yes
Number of active contacts: 2
With signal lamp: No
With built-in USB power supply: No
Number of units: 1
Number of phases: 1
Connection type: Plug-in terminal
With hinged cover: No
With increased touch protection: Yes
Text field/inscription area: No
Colour: Other
Metallic colour: No
Transparent: No
Lockable: No
Ejector mechanism: No
With functional lighting: No
With orientation light: Yes
Overvoltage protection: No
Residual current protection: No
With fine-wire fuse: No
Special power supply: Without special power supply
Mounting type: Flush-mounted
Mounting type: Claw/screw mounting
Material: Plastic
Material grade: Thermoset
Halogen-free: Yes
Finish: Matt
Antibacterial treatment: No
With on/off switch: No
With loop-through function: No
Twisted central insert: No
Rated current: 16 A
Rated voltage: 250 V
Suitable for protection class (IP): IP20

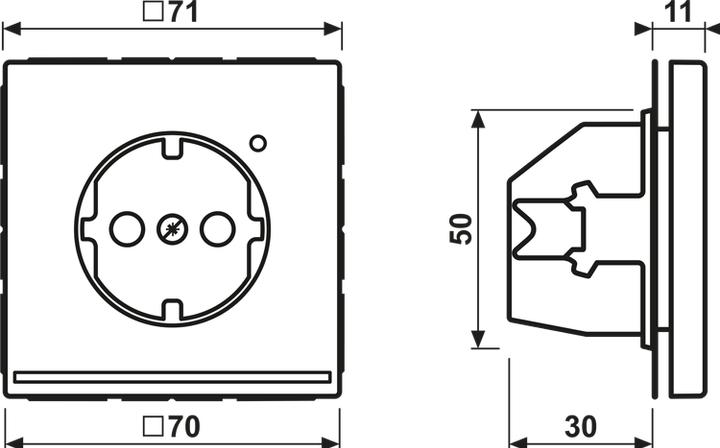

Device width: 70 mm
Device height: 70 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No
For "difficult conditions" (according to VDE): No

Further details:

• LED orientation light with integrated brightness sensor
• Integrated increased touch protection (Safety Plus)
• Spring terminals for rigid conductors up to 2.5 mm²
• Connection terminals according to DIN VDE 0620
• Installation note: Use deep box with white LEDs (colour temperature 4000 K)
• Power consumption standby/operation: 0.3 / 0.5 W
• Support ring, claws and claw screws are integrated into the protective measure via an earthing rail.
• EAN: 4011377228443.
