Jung Schuko socket outlet 16A 250V AS 1520 NBFKL

Manufacturer: Jung

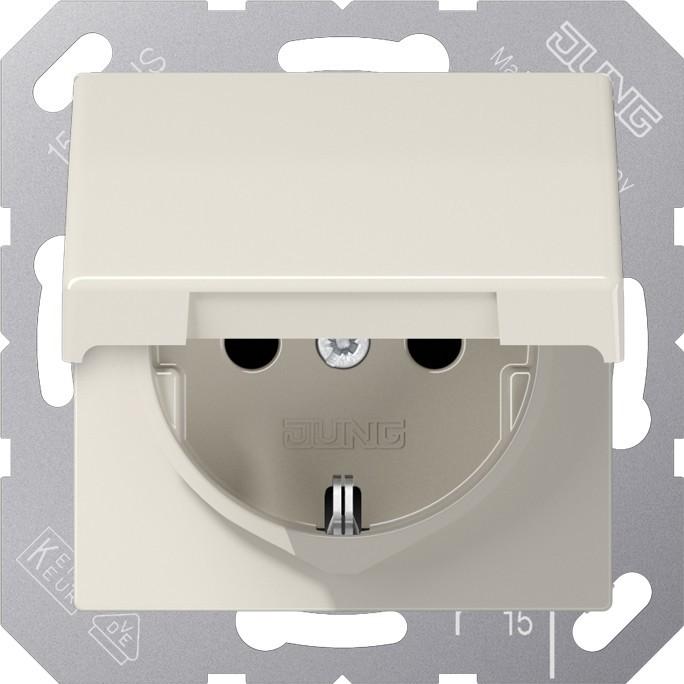

Description: Schuko socket outlet 16A 250V with hinged cover
Type: AS 1520 NBFKL
Version: Schuko
Protective contact: Yes
Protective earth contact round: No
Number of active contacts (round): 2
With signal lamp: No
With built-in USB power supply: No
Number of units: 1
Number of phases: 1
Imprint/labelling: Without
Connection type: Plug-in terminal
With hinged cover: Yes
With increased touch protection: No
Text field/labelling area: No
Colour: White
RAL number (similar): 1013
Metallic colour: No
Transparent: No
Lockable: No
Ejector mechanism: No
With functional lighting: No
With orientation light: No
Overvoltage protection: No
Residual current protection: No
With fine-wire fuse: No
Special power supply: Without special power supply
Mounting type: Flush-mounted
Mounting type: Fastening with screw
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Other
Finish: Glossy
Antibacterial treatment: No
With on/off switch: No
With loop-through function: No
Twisted central insert: No
Rated current: 16 A
Rated voltage: 250 V
Suitable for protection class (IP): IP44

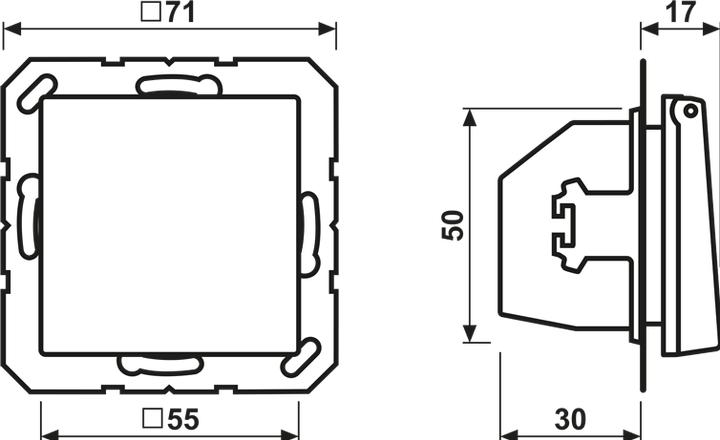

Unit width: 55 mm
Device height: 55 mm
Device depth: 29.5 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No
Cover: Central plate
For "difficult conditions" (according to VDE): No

Further details: Protective contact socket outlet, white with hinged cover (with return spring) with spring terminals for rigid and untreated flexible conductors up to 2.5 mm². Connection terminals according to DIN VDE 0620 (screw fixing, without fixing claws). Support ring is integrated into the protective measure via an earthing bar. Material: Thermoplastic. Dimensions (W x H): 55 x 55 mm.
