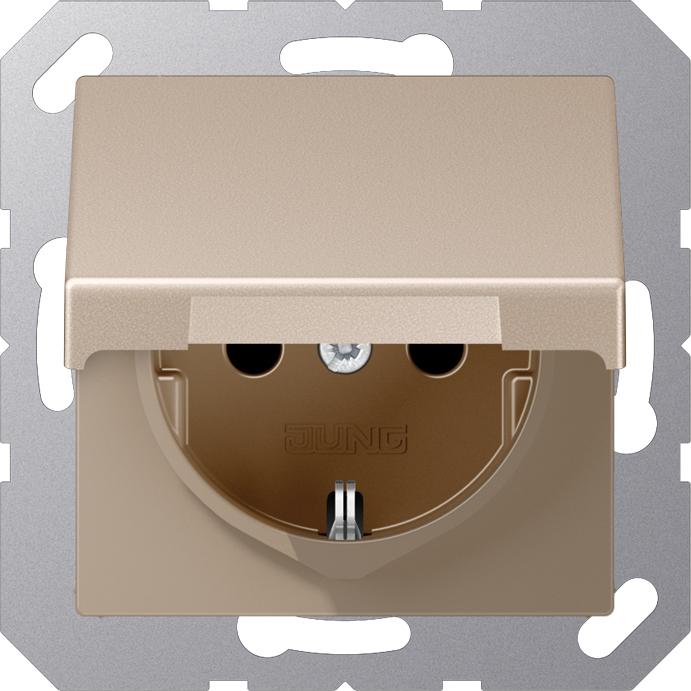

JUNG Socket outlet 1f champ A UP w.BS hinged IP20 A1520BFKIKLCH
Product details
The JUNG socket A1520BFKIKLCH is a high-quality built-in socket designed for indoor use. It provides a reliable and safe power supply with a rated current of 16 amperes and a rated voltage of 250 volts. The socket is equipped with a hinged cover that features a return spring for added protection. An integrated increased touch protection (Safety Plus) ensures that the socket can be safely used in households with children. The installation is done flush-mounted, allowing for a clean and discreet setup. Made from painted thermoplastic, the socket is both robust and durable. The connection terminals comply with DIN VDE 0620 standards and are suitable for rigid as well as untreated flexible conductors up to 2.5 mm². This socket combines functionality and safety in a modern design.
- Integrated increased touch protection (Safety Plus)
- Hinged cover with return spring for additional protection
- Spring terminals for rigid and untreated flexible conductors up to 2.5 mm²
- Installation type: flush-mounted for a discreet setup
- Made from painted thermoplastic for durability.
Number of cans | 1 x |
Socket type | CEE 7/3 |
Area of use | Inside |
Exact colour description | Champagne |
Mounting type | Flush-mounted |
Item number | 32528095 |
Manufacturer | JUNG |
Category | Sockets |
Manufacturer no. | A1520BFKIKLCH |
Release date | 31.1.2023 |
Exact colour description | Champagne |
Material group | Plastic |
Material | Lacquered thermoplastic |
Socket type | Built-in socket |
Socket type | CEE 7/3 |
Number of cans | 1 x |
Protection type (IP code) | IP44 |
Nominal current | 16 Ah |
Nominal voltage | 250 V |
Area of use | Inside |
Mounting type | Flush-mounted |
Mounting type | Claw fastening, Screw fastening |
connector type | Spring-cage connection |
Additional properties | Hinged cover |
Smart Home | Not compatible |
Requires Smart Home Hub | No |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |

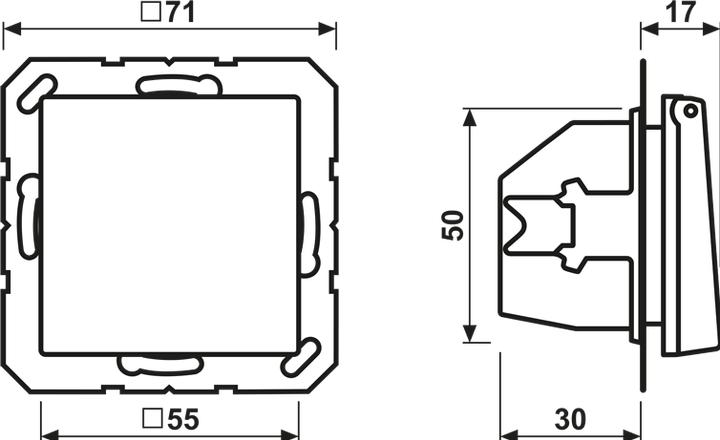

Stack depth | 2.95 cm |
Width | 5.50 cm |
Height | 5.50 cm |
