Kaiser housing AK2 AT4602
Manufacturer: Kaiser
Designation: Housing AK2 4xProtect
Type: AT4602
Max. conductor cross-section: 4 mm²
Mounting: Mounting plate
Shape: Rectangular
Mounting: On cable tray
Mounting in the ground: No
Mounting under water: No
Entry from the rear: No
Length: 215 mm
Width: 95 mm
Depth: 85 mm
Bayable: No
Number of entries: 6
Type of enclosure entry: Pre-stamped
Material: Plastic
Halogen-free: Yes
Surface protection: Untreated
Colour: Grey
Protection class (IP): IP20
Version cover: Cover with socket
Transparent cover: No
Cover fixing: Snap-on
Pourable: No
Supplied with potting compound: No
Sealable: No
Rated insulation voltage Ui: 400 V
Functional integrity: Without
With shielding: No
Weatherproof: No
Operating temperature: -40 to 70 °C
Explosion-proof version: No
For Ex-zone gas: Without
For Ex-zone dust: Without
Kaiser housing AK2 AT4602: Further details

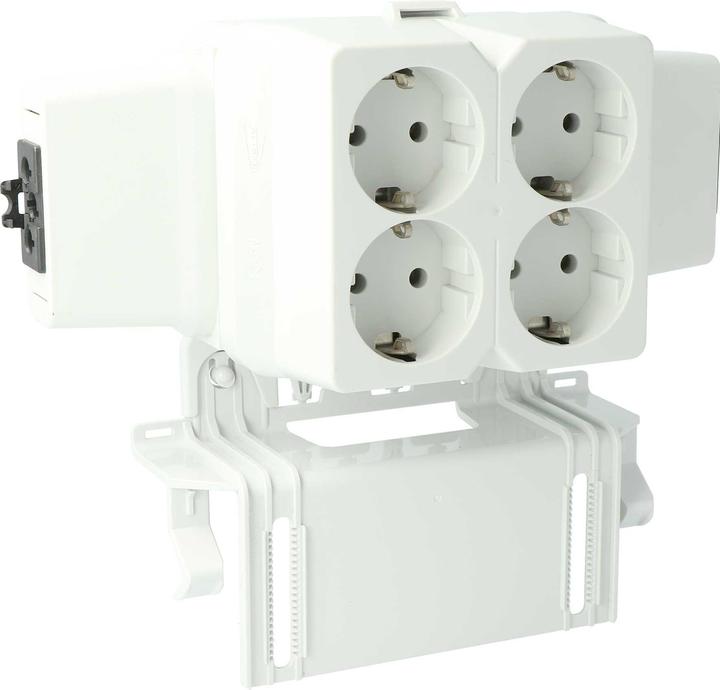

Pluggable 100% housing AK2, 4x earthing contact, in: 3pol sw Wieland gesis® CLASSIC, including mounting plate angled.
Junction box type | Distribution box |
Width | 95 mm |
Protection type (IP code) | IP20 |
Length | 215 mm |
Item number | 31931292 |
Manufacturer | Kaiser |
Category | Junction box |
Manufacturer no. | AT4602 |
Release date | 12.10.2022 |
Colour | Grey |
Exact colour description | Grey |
Material group | Plastic |
Material | Plastic |
Junction box type | Distribution box |
Protection type (IP code) | IP20 |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 pcs. |
Width | 95 mm |
Length | 215 mm |
