Kaiser Front Part HaloX 100 1281-11

Manufacturer: Kaiser
Designation: Front part HaloX 100 DA vario for in-situ concrete
Type: 1281-11
Accessory/Spare Part Type: Front part
Accessory: yes

Kaiser Front Part HaloX 100 1281-11: additional details

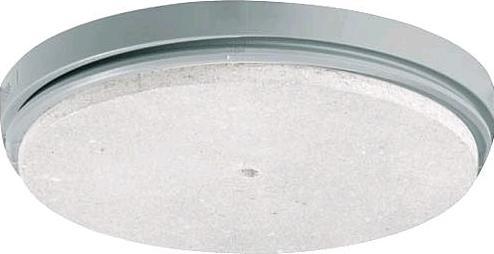

HaloX® 100 universal front parts (1281-11). The dimensionally stable HaloX® system is modularly designed for use in in-situ concrete. Three housing diameters with a variety of round, square, and universal front parts allow for the integration of lights and speakers with a mounting diameter of up to 250 mm, even in exposed concrete. The system provides ample space for the installation of operating devices, such as LED drivers, with tunnels. Optional extension rings can be used to increase the installation depth. All front parts are moisture-resistant and can be accurately positioned and nailed down before the first reinforcement is laid. The housing and front parts are securely interlocked and can be freely adjusted even after installation. The tool-free opening mechanism with a combination entry M20/M25 allows pipes to be easily and quickly inserted, and even in case of incorrect placement, the entry can be easily resealed. It offers secure pipe retention with a depth stop, eliminating the need for subsequent internal shortening of the pipes. After pouring, front parts with a defined mounting diameter can be opened with a targeted hammer strike. The front parts for universal opening sizes can be flush-mounted or skimmed over. Subsequently, the desired installation opening can be created with conventional milling tools, such as MULTI 4000.

Installation Type: In-situ concrete
Mounting Diameter for Light/Speaker: 0-100 mm
Front Part Shape: Round ceiling outlet
EAN: 4013456546684.
