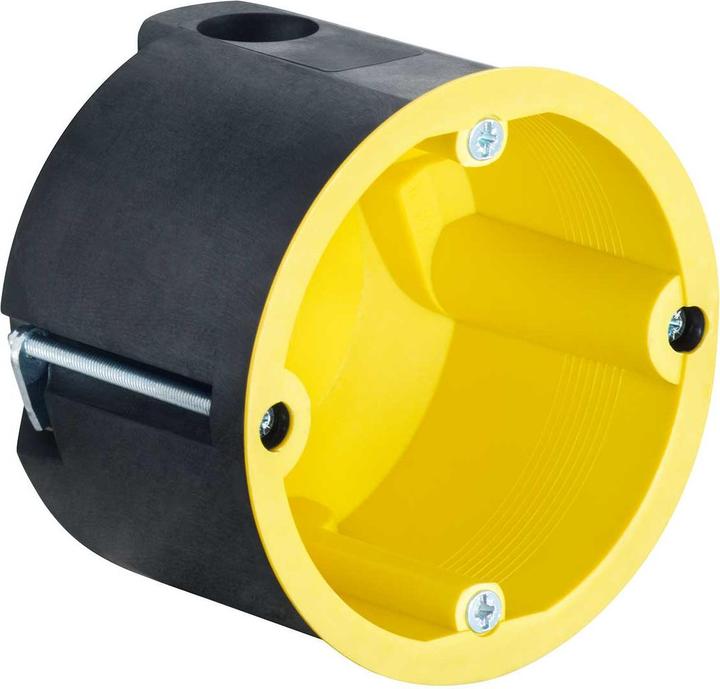

Kaiser Device Connection Box 9074-01

Manufacturer: Kaiser
Description: Device Connection Box
Radiation Protection: bf
Type: 9074-01
Mounting Type: Hollow Wall
Shape: Round
Design: Device Connection Box/Box
Version: Single
With Rotatable Ring: No
Couplable: Yes
Filling: None

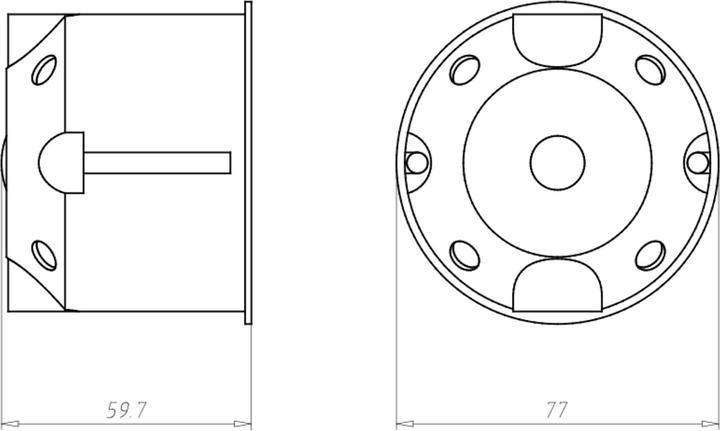

Diameter: 74 mm
Depth: 58.5 mm
Internal Depth: 54.5 mm
Suitable for Wall/Panel Thickness: 7-40 mm
For Number of Device Inserts: 1
Device Fastening: Screws
With Screws: Yes
Housing Entry through Breakout Opening: No
Housing Entry through Sealing Membrane: No
Housing Entry through Pipe Socket: No
Housing Entry through Step Membrane: No
Suitable for Cable Diameter: 4-11.5 mm
Pipe Locking: No
Pipe Locking Optional: No
Rear Entry: No
Number of Entries: 4
Material: Plastic
Halogen-Free: Yes
Surface Protection: Untreated
Color: Yellow
Protection Class (IP): IP3X
Cover Design: None
Transparent Cover: No
Cover Fastening: Screwed
Sealability: No
Function Preservation: None
With Shielding: Yes
Air Tight: Yes
Max. Conductor Cross-Section: 2.5 mm²
Terminal Position Fixed: No
Light Hook Fastening: No
Socket: Other
Special Application: Radiation Protection
With Partition Wall: No

The innovative radiation protection box from Kaiser protects against medically used radiation, for example, in X-ray facilities. Due to the high density of the radiation protection compound, both soft and hard X-rays are absorbed. The box is particularly suitable for lead-free radiation protection walls and ensures a lead equivalence of the wall up to 3 mm Pb due to its dose-reducing effect in the tube voltage range between 40 - 150 kV, even with opposite installation.

Application Area: For Built-in Devices
Halogen-Free: Yes
Milling Hole Ø: 74 mm
Depth: 58.5 mm
Installation Type: Radiation Protection.
