Usage with integrated measuring cell

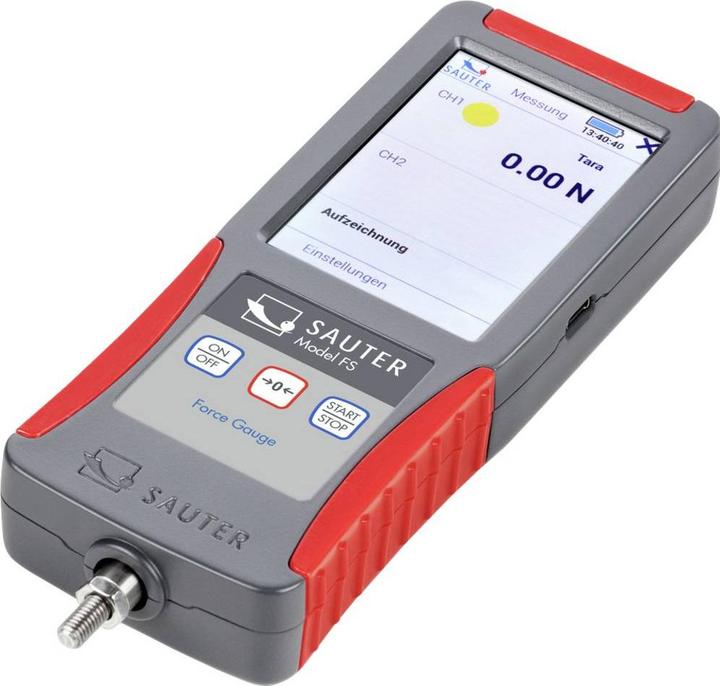

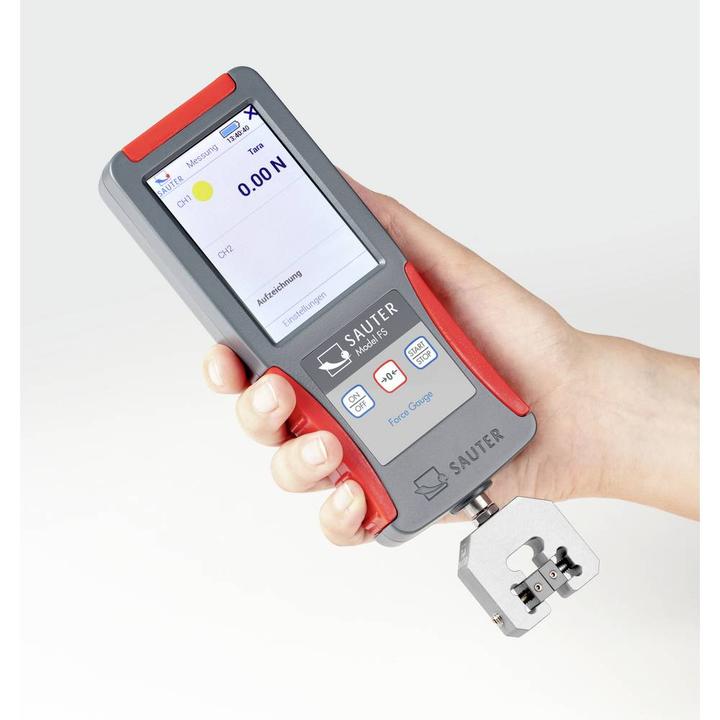

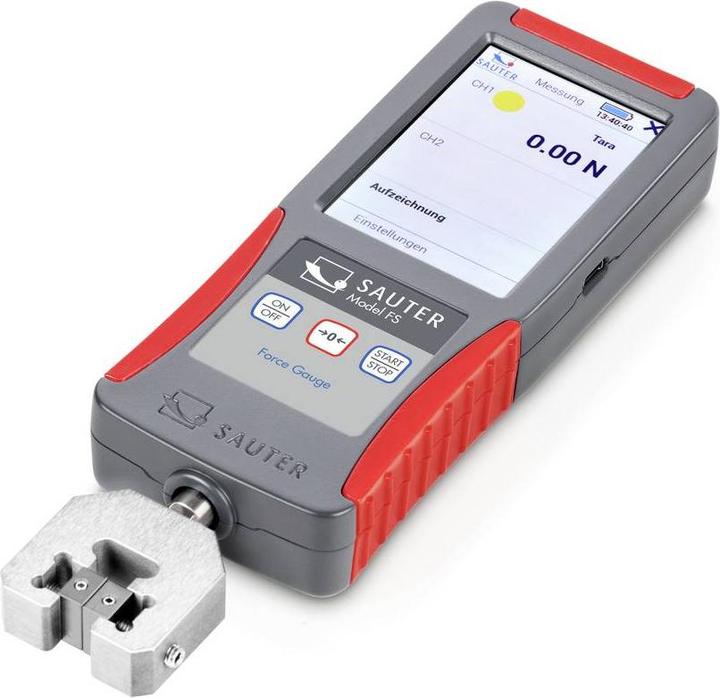

The premium force measuring device SAUTER FS features an integrated measuring cell for tensile and compressive force applications. Whether used mobile for quick testing or integrated stationary into a test stand or production line, all recorded values can be read at a glance in real-time via the multifunction display. The integrated interface allows data to be sent to a PC or laptop for further processing.

Usage with external measuring cells

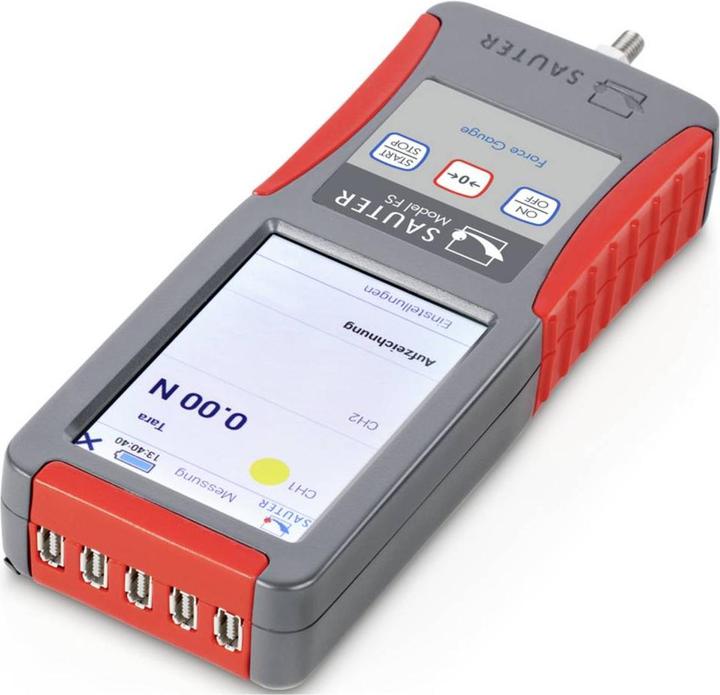

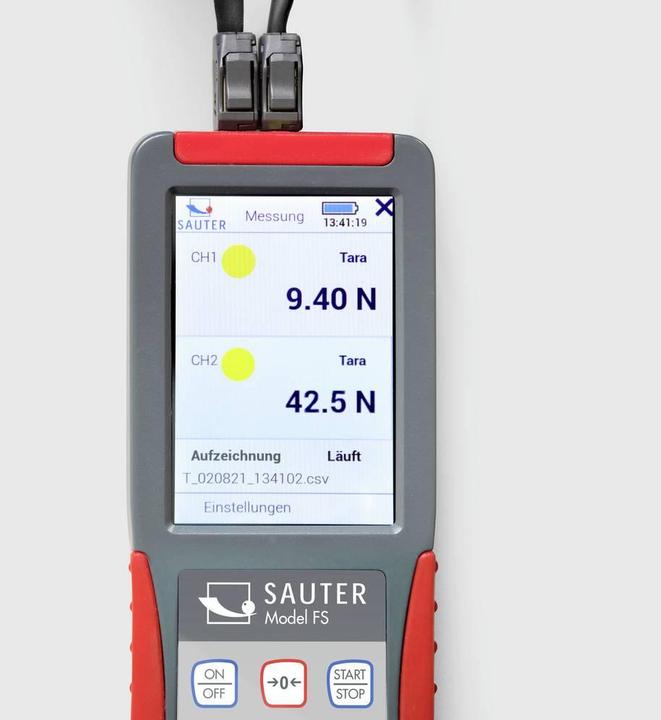

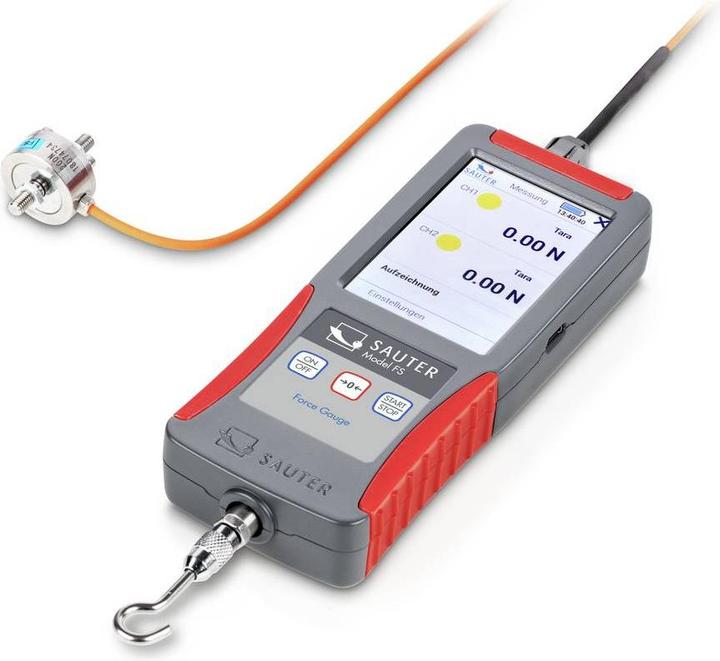

The premium force measuring device SAUTER FS is compatible with all SAUTER strain gauge measuring cells. Up to 4 external measuring cells can be connected simultaneously. When using all available external measuring channels, the internal measuring cell is deactivated as long as an external measuring cell is connected.

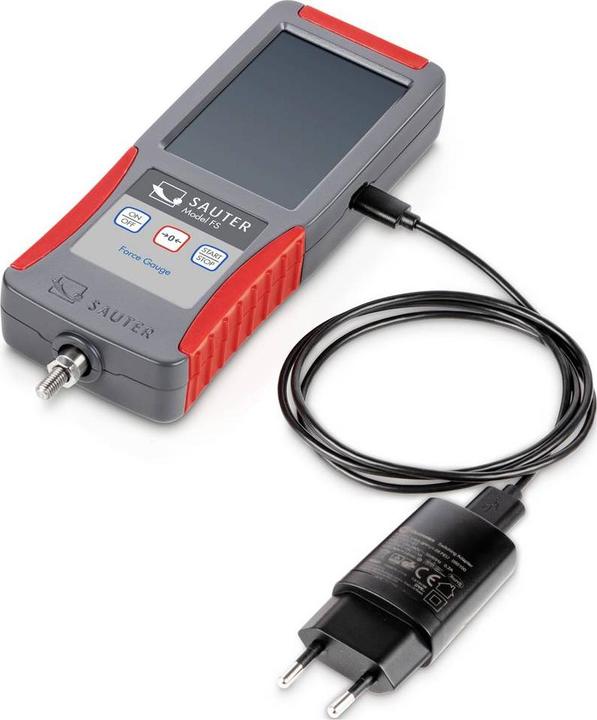

Measuring forces in various tensile or compressive directions with just one measuring device is possible; 3.5" touchscreen; standard version with 2 measuring channels for external force sensors (expandable from 2 to 4 later); one internal measuring cell is possible (deactivated when an external measuring cell is connected); suitable for 4-wire and 6-wire sensors with strain gauges; two-point calibration with weights or numerical calibration possible; specific data of an external sensor is stored directly in the connector; USB interface for data transmission and power supply included as standard; internal device memory (16 GB); adjustable SI units: kg, N, kN, mN, MN, Nm, kNm, mNm; tolerance function; track function for continuous measurement display; peak value measurement; mountable on all SAUTER test stands; delivered in a high-quality and robust system case (systainer® T-LOC) including plug power supply and USB Type C cable; Tip: Order the practical system case (systainer® T-LOC) for storing and transporting accessories, clamps, sensors, etc. at the same time.
