Klauke Al-Cu press cable lug
Minimum order 5Product details

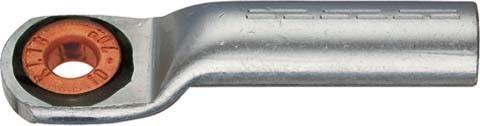

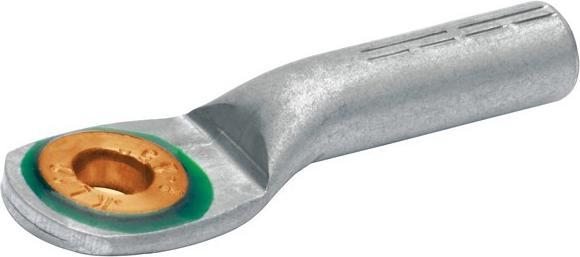

Klauke Al-Cu compression cable lug 308R/10
Manufacturer: Klauke
Designation: Al-Cu compression cable lug 95RM/SM-120SE
Type: 308R/10
Cross-section shape: Round/Sector
Narrow flange design: No
Nominal cross-section aluminium, RM/SM: 95 mm²
Nominal cross-section aluminium, SE: 120 mm²
Connection thread dimension (metric): 10
Material: Aluminium
Suitable for Al/St ropes: Yes
Longitudinal sealing: No
Code number: 22
Number of fixing holes: 1
Conforms to DIN: Yes
Sleeve shape: Long
Further details: Pipe dimension according to DIN 46329. For strain-relieved connections of Al conductors according to DIN EN 60228 and Al ropes according to DIN EN 50182. With code number for clear tool assignment. Filled with contact grease for optimum pressing properties. For screwing strain-relieved aluminium connections onto Cu-rails in damp rooms. For round pressed sector conductors. With copper eye in the screwing area. With crimping marks for correct crimping. Precise end machining for easy cable entry. Bare, material E-Al. Cu according to EN 13600.
Item number | 36760161 |
Manufacturer | Klauke |
Category | Cable joints |
Manufacturer no. | 308R10 |
Release date | 28.6.2023 |
Minimum order | 5 |
Order quantity steps | 5 |
Exact colour description | Silver |
Colour | Silver |
Material | Aluminium |
Material group | Metal |
Cable connection type | Cable lugs |
