Klauke Press connector

Minimum order 10
Price in EUR including VAT
was EUR56,90
Ratings
BrandMore from Klauke
Delivered between Mon, 13.10. and Mon, 20.10.
free shipping

Product details

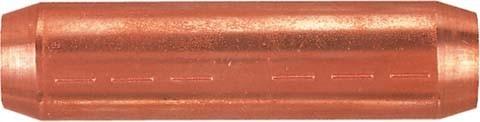

Klauke crimp connector 504R
Manufacturer: Klauke
Designation: Crimp connector 25qmm
Type: 504R
Nominal cross section: 25 mm²
AWG range: 3
Design: DIN design
Sleeve shape: long
Suitable for solid conductors: yes
Suitable for stranded conductors: yes
Suitable for fine-stranded conductors: yes
Suitable for high temperatures (up to 650 °C): no
Suitable for enamelled wire: no
Suitable for round conductors: yes
Suitable for flat conductors: no
Material: copper
Surface protection: bare
Insulation: without
Voltage range: up to 30 kV
Type of connection: butt connector
Number of branches: 2
For tension-resistant connections: no
Oil stop/centre bar: no

Klauke compression connector 504R: further details
Pipe dimension according to DIN 46267 Part 1. With code number for clear tool allocation. For copper medium voltage cable connections 10-30 kV. With bevelled edges for reduced winding effort during assembly. For strain-relieved connections. With crimping marks for correct crimping. Optimum material and crimping properties due to annealed material. Precise end machining for easy cable entry. Bright. Material Cu according to EN 13600. EAN: 4012078058964.

Key specifications

Item number
36754986

General information

Manufacturer
Klauke
Category
Cable joints
Manufacturer no.
504R
Release date
28.6.2023
Minimum order
10
Order quantity steps
10

Material

Material
Copper
Material group
Metal

Cable connection Properties

Suitable for cable cross-section
25 mm²

Origin

Country of origin
Slovakia
