Klauke Press connector
Minimum order 5Product details

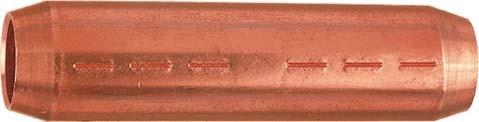

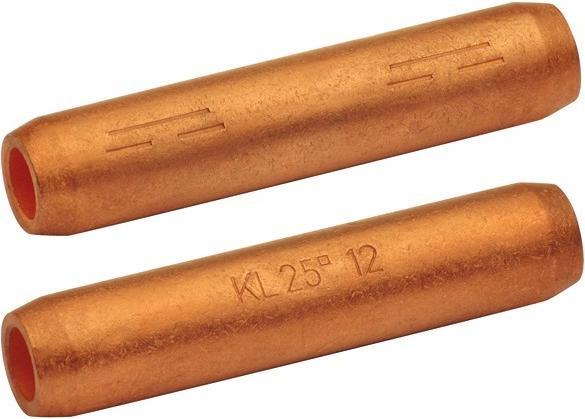

Klauke crimp connector 511R/LD
Manufacturer: Klauke
Designation: Crimp connector 185 qmm
Type: 511R/LD
Nominal cross section: 185 mm²
Design: DIN design
Sleeve shape: Long
Suitable for solid conductors: Yes
Suitable for stranded conductors: Yes
Suitable for fine-stranded conductors: Yes
Suitable for high temperatures (up to 650 °C): No
Suitable for enamelled wire: No
Suitable for round conductors: Yes
Suitable for flat conductors: No
Material: Copper
Surface protection: Bare
Insulation: Without
Voltage range: Up to 30 kV
Type of connection: Butt connector
Number of branches: 2
For tension-resistant connections: No
Oil stop/centre bar: Yes
Klauke crimp connector 511R/LD: Further details
Pipe dimension according to DIN 46267 Part 1. With code number for clear tool allocation. For copper medium voltage cable connections 10-30 kV. With bevelled edges for reduced winding effort during assembly. For strain-relieved connections. Longitudinally tight design with oil stop. With crimping marks for correct crimping. Optimum material and crimping properties due to annealed material. Precise end machining for easy cable entry. Material Cu according to EN 13600, bright.
Item number | 36769389 |
Manufacturer | Klauke |
Category | Cable joints |
Manufacturer no. | 511RLD |
Release date | 28.6.2023 |
Minimum order | 5 |
Order quantity steps | 5 |
Material | Copper |
Material group | Metal |
Suitable for cable cross-section | 185 mm² |
Country of origin | Slovakia |
