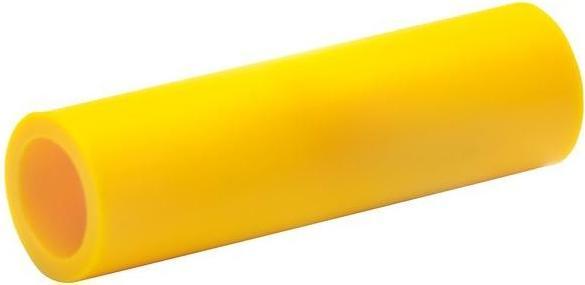

Klauke Shock connector
More than 10 pieces in stock at supplier
Product details
Klauke butt connector 700
Manufacturer: Klauke
Designation: Butt connector 4-6 qmm
Type: 700
Nominal cross section: 4-6 mm²
AWG range: 10-11
Design: Standard design
Sleeve shape: Long
Suitable for solid conductors: No
Suitable for stranded conductors: No
Suitable for fine stranded conductors: Yes
Suitable for high temperatures (up to 650 °C): No
Suitable for enameled wire: No
Suitable for round conductors: No
Suitable for flat conductors: No
Material: Other
Surface protection: Tin-plated
Insulation: Polyamide (PA)
Color of insulation: Yellow
Voltage range: Up to 230/380 V
Connection type: Butt connector
Number of branches: 2
For tension-resistant connections: No
Oil stop/center bar: No
Klauke butt connector 700: More details
For fine and superfine stranded conductors. With center impression for exact cable insertion. Insulated, halogen-free. Color coding depending on cross-section. Temperature resistant up to 105 °C. Tinned. Material: Cu-ETP. Insulating sleeve: PA. EAN: 4012078000741.
Item number | 20020040 |
Manufacturer | Klauke |
Category | Cable joints |
Manufacturer no. | 700 |
Release date | 16.3.2022 |
Exact colour description | Yellow |
Colour | Yellow |
Material | Copper |
Material group | Metal |
Cable connection type | Plug-in terminals |
Suitable for cable cross-section | 6 mm² |
Plug type | Angled on one side |
Country of origin | Slovakia |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Shock connector |
Items per sales unit | 100 x |
Length | 170 mm |
Width | 13 mm |
Height | 3 mm |
Weight | 250 g |
