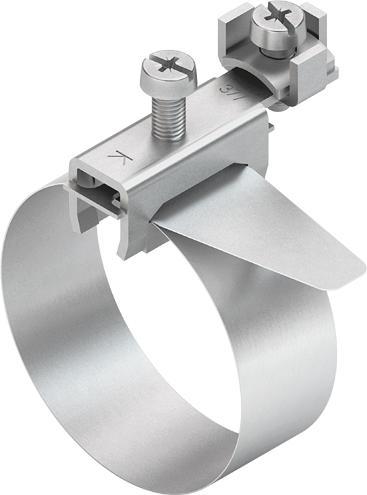

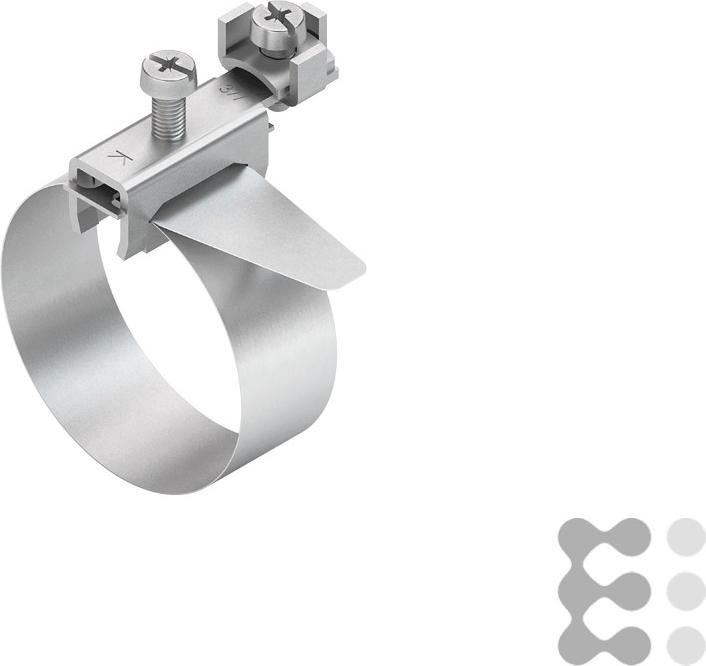

HKL Grounding Band Clamp 37/6

Manufacturer: HKL
Description: Grounding band clamp with connection terminal
Type: 37/6
Material: Brass
Surface protection: Nickel-plated
Clamping/holding range: 17.5 - 165 mm
Cross-section of the cable to be connected: 2.5 - 16 mm²
Length: 582 mm
Number of mounting holes: 1

Further details:
Grounding band clamp with universal connection terminal, suitable for longitudinal and transverse connections in dry indoor environments, usable for pipelines made of galvanized steel, copper, and stainless steel.

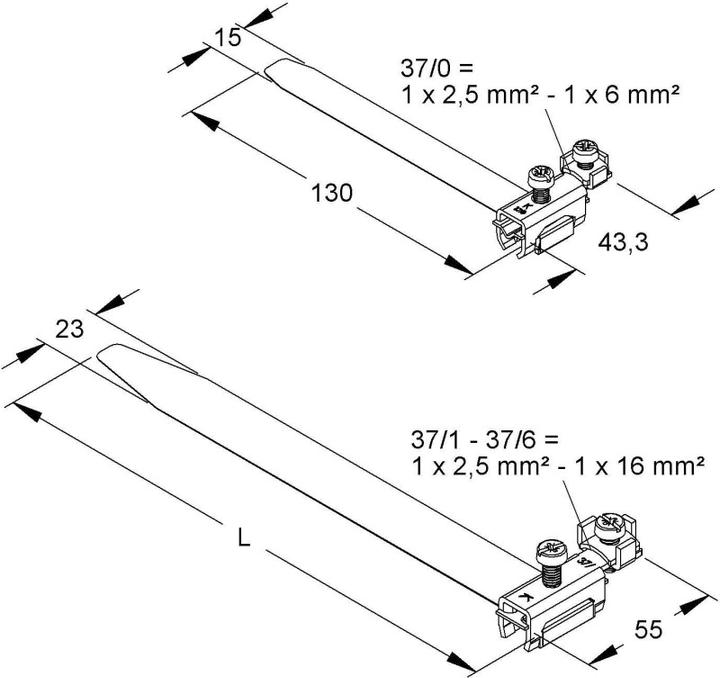

Clamp width: 55 mm
Band width: 23 mm
Band length: 582 mm
For pipe diameter: 17.5 - 165 mm
For conductor cross-sections: 1 x 2.5 mm² - 1 x 16 mm²
Material of the bracket: Brass, nickel-plated
Material of the clamp band: Bronze, nickel-plated
Material of screws: Steel, galvanized.
