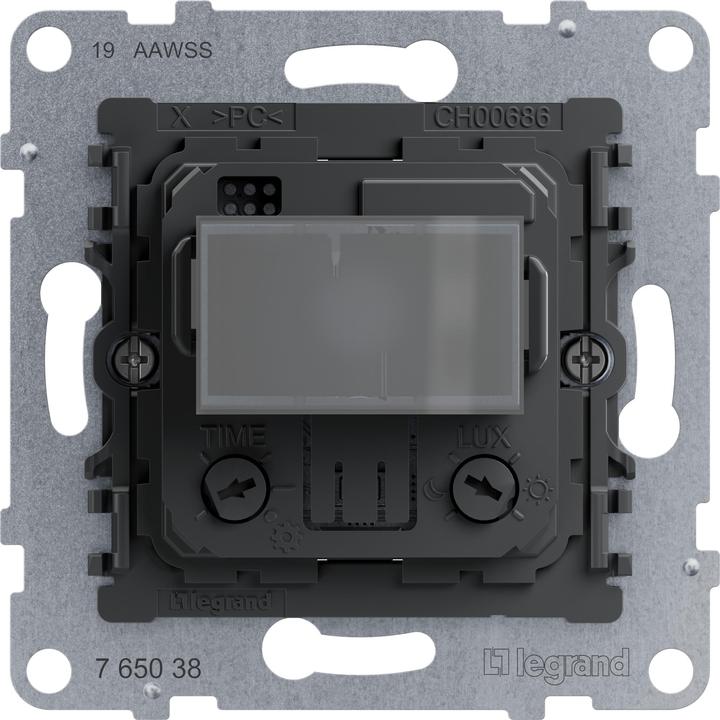

Motion detector with neutral wire connection (3-wire) for automatic switching of consumers upon detection of persons (heat sources) within the detection range. Equipped with electronic surge and short circuit protection. Suitable for use with spread claws and screw mounting, and comes with a transparent dust protection cover.

Features:
– Detection range: 170°
– Suitable for secondary control
– With or without manual switch
– Compatible with all types of lamps
– Variable detection range: max. 8 m
– Switch-off delay: 5 sec. - 30 min.
– Brightness threshold: 5 - 1275 Lux
– 4 levels of sensitivity adjustment

Suitable for the following load types:
– LEDs: 0 to 500 W
– Compact fluorescent lamps: 0 to 500 W
– Halogen lamps, incandescent bulbs: 2000 W
– LEDs, compact fluorescent lamps, halogen lamps, fluorescent lamps with ferromagnetic or electronic ballast: 1000 W

Up to 10 detectors can be controlled via a button through the secondary control input. Parallel connection of multiple motion detectors is possible (max. 10). In a master/slave installation, 10 slaves can be controlled via one master. The cover is available with or without manual operation and must be ordered separately. To be completed with the frame covers from the SEANO, SEANO+, and SEANO Natura series.
