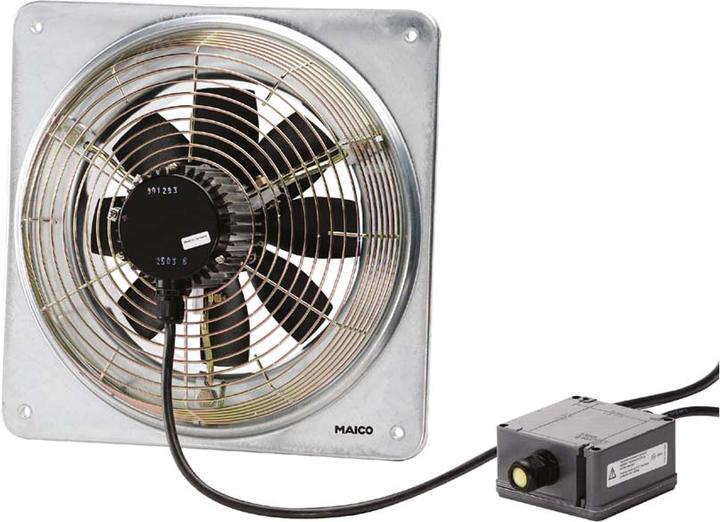

The MAI DZQ30/2BEExe axial wall fan from Maico is a powerful ventilation fan specifically designed for use in explosion-prone areas. With a robust three-phase motor and a high air flow rate of up to 3380 m³/h, this fan is ideal for ventilation in industrial applications. The fan is explosion-proof and meets the strict safety requirements of the European Directive RL 2014/34/EU. It can be used in various environments, as it is suitable for temperatures ranging from -20 °C to +60 °C. The design allows for flexible installation in any position, making it a versatile solution for different requirements. The fan is equipped with an axial impeller made of conductive plastic, which has a high momentum quality, ensuring efficient air transport. Additionally, the fan is reversible, providing extra flexibility in application.

• Explosion-proof according to ATEX and IECEx for Zones 1 and 2
• Suitable for all gases and vapors of Ex group IIA and IIB, including hydrogen
• Maintenance-free, robust three-phase motor with ball bearings
• Protection class IP 64 with a protective grille on the intake side for increased safety
• Reversible operation with a volume flow loss of approximately 35% during abnormal operation.
