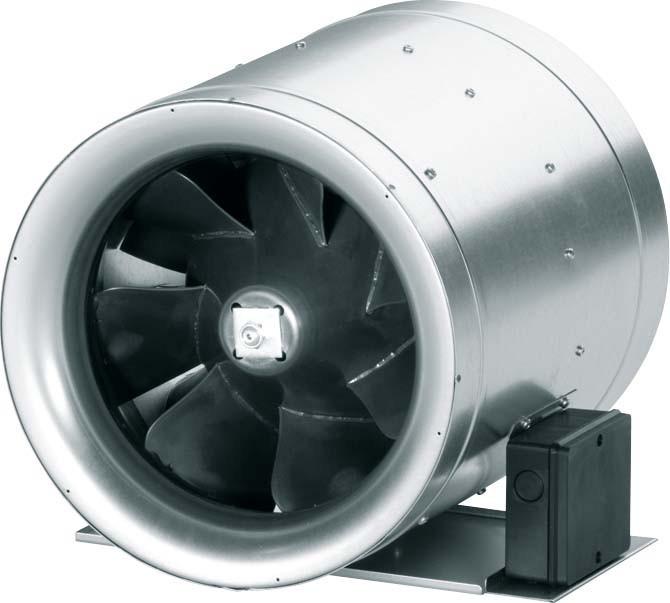

The MAI EDR 35 diagonal fan from Maico is a powerful ventilation fan designed for direct installation in ductwork. With an airflow capacity of up to 5000 m³/h, this device is ideal for applications requiring efficient air circulation, even under high resistance. The fan is characterized by its compact design and lightweight construction, which significantly facilitates installation. The integrated mounting plate and intake nozzle ensure low-turbulence air intake, while the diagonal impeller with a downstream stator guarantees optimal airflow. The MAI EDR 35 is equipped with a diffuser that increases static pressure and features a gap seal between the suction and pressure chambers to reduce bypass losses. With thermal overload protection and the option for speed control, this fan is both safe and adaptable for various operating conditions.

• Direct installation in ductwork
• Optimal airflow due to profiled impeller and stator blades
• Speed control possible via transformers
• Thermal overload protection as standard
• Protection class IP X4 for enhanced safety.
