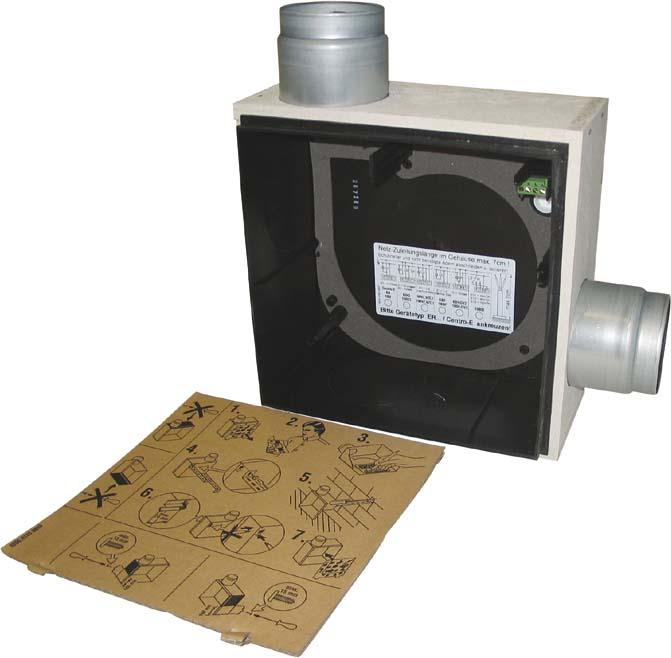

Single-room ventilation - Fire protection housing for the installation of a fan ER 60 ..., ER 100 .... - Suitable for installation in residential kitchens, bathrooms, and WCs. - Features a maintenance-free fire protection shut-off device to prevent fire transfer K90-18017. - Metal discharge nozzle DN 75/80 with metal shut-off damper and automatic release mechanism. - The metal shut-off damper also serves as a cold smoke damper. - Easily removable backdraft damper for simple and quick cleaning. - Installation within the shaft in walls and ceilings is possible. - Approved for wall installation with discharge direction upwards, to the right, or to the left, as well as ceiling installation. - Low construction depth of the flush-mounted housing and cover. - Comes with a plaster protection cap. - Practical snap fastening and electrical plug connection for quick installation of the fan in the housing. - Plastic parts are normally flammable according to class B 2. - General building authority approval, Approval No.: Z-51.1-46. - Approval documents available upon request.

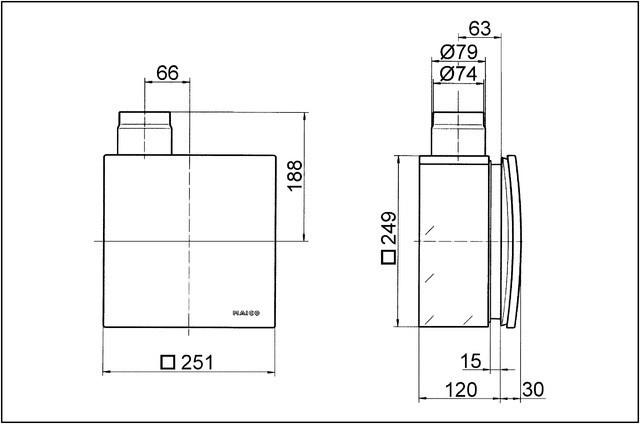

Item: ER - UPB/R - Version: Metal discharge nozzle on the side with metal shut-off damper and automatic release mechanism, with fire protection housing, secondary room connection on the right - Air direction: Ventilation - Installation location: Wall / Ceiling - Installation type: Flush-mounted - Material: Plastic - Color: Black - Weight: 2.67 kg - Weight with packaging: 3.14 kg - Fire protection: Yes - Shut-off device: Integrated - Discharge direction: Side - Connection diameter: 75 mm / 80 mm - Width: 249 mm - Height: 249 mm - Depth: 120 mm - Width with packaging: 350 mm - Height with packaging: 350 mm - Depth with packaging: 125 mm - Approval number: Z-51.1-46.
