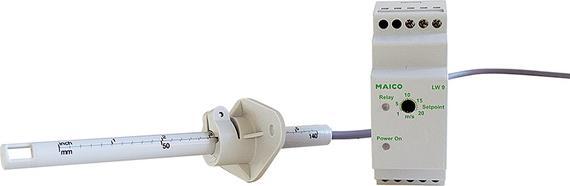

Maico Airflow Monitor LW 9

Manufacturer: Maico
Designation: Airflow Monitor
Type: LW 9
With Display: yes
Protection Class (IP): IP10
Explosion-Proof: no

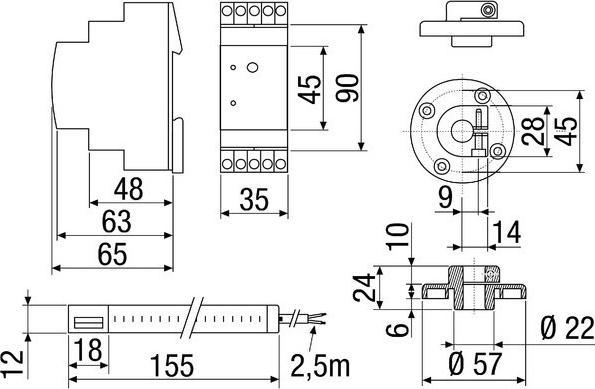

Height: 90 mm
Width: 35 mm
Depth: 65 mm

The Maico Airflow Monitor LW 9 monitors the minimum airflow in ventilation systems. The length of the sensor cable is 2.5 m. When laying the sensor cable in cable ducts, shielded cables must be used. The sensor detects the airflow and compares it with the set target value of the control unit.

The control unit is mounted on a 35 mm profile rail and features an LED function indicator for the relay output and nominal voltage. It has a selector switch for operating and standby functions, as well as a potential-free output via a changeover contact, e.g., for operational or fault notifications.

Additional details:

• Item: LW 9
• Minimum flow velocity: 1 m/s
• Maximum flow velocity: 20 m/s
• Rated voltage: 230 V
• Mains frequency: 50 Hz / 60 Hz
• Maximum load (inductive load): 2 A
• Maximum load (resistive load): 5 A
• Installation location: Duct
• Weight: 0.34 kg
• Weight with packaging: 0.46 kg
• Medium temperature at rated current: -20 °C to 80 °C
• Ambient temperature: 60 °C
• EAN: 4012799577799.
