Makita DLS714Z

Price in EUR including VAT, free shipping
Delivered between Fri, 23.5. and Tue, 27.5.
Only 1 item in stock at supplier

Product details

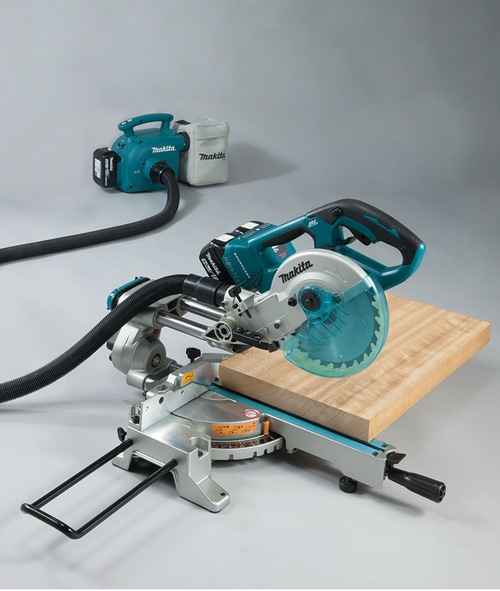

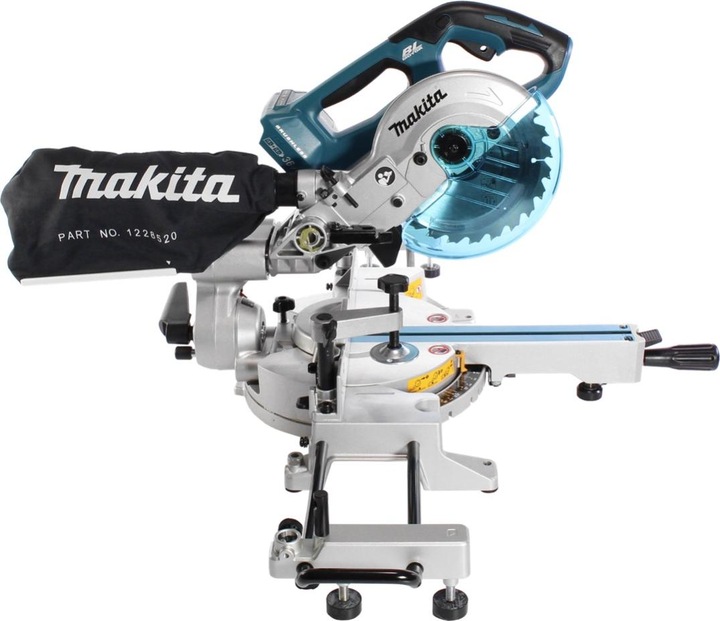

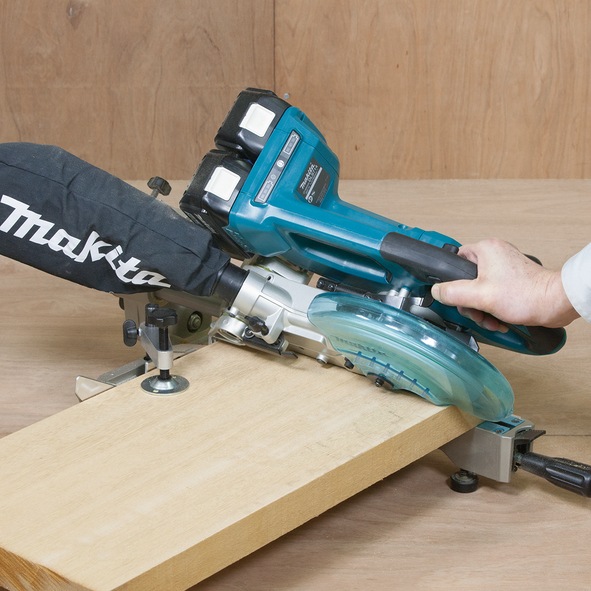

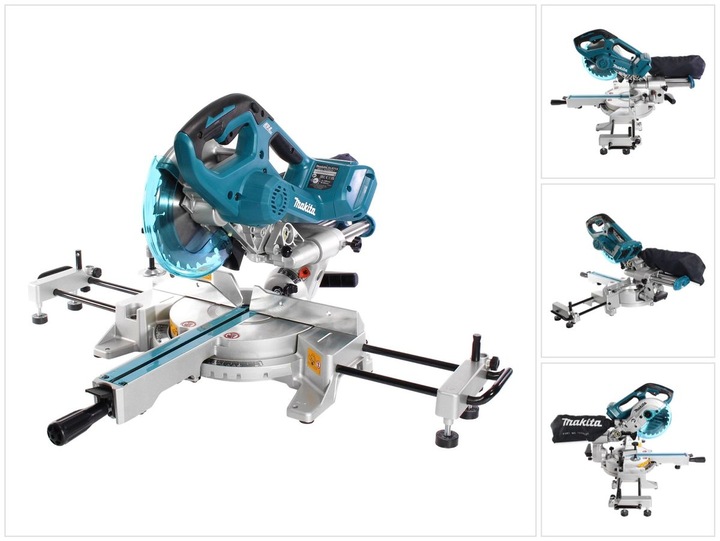

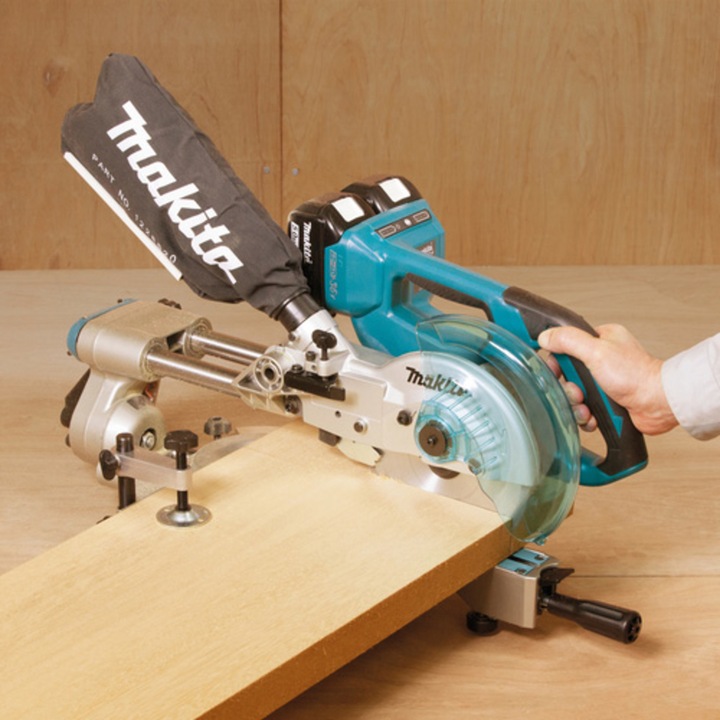

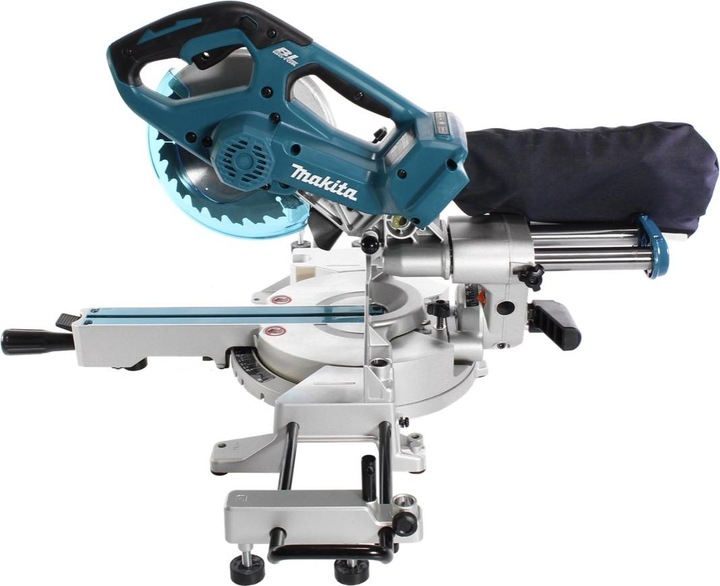

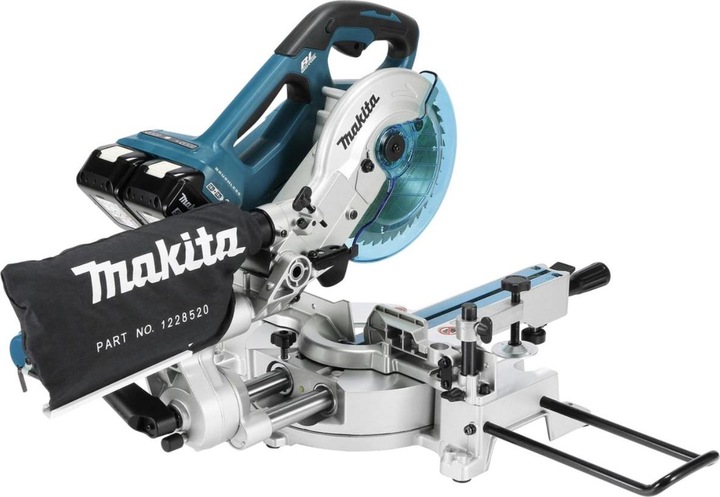

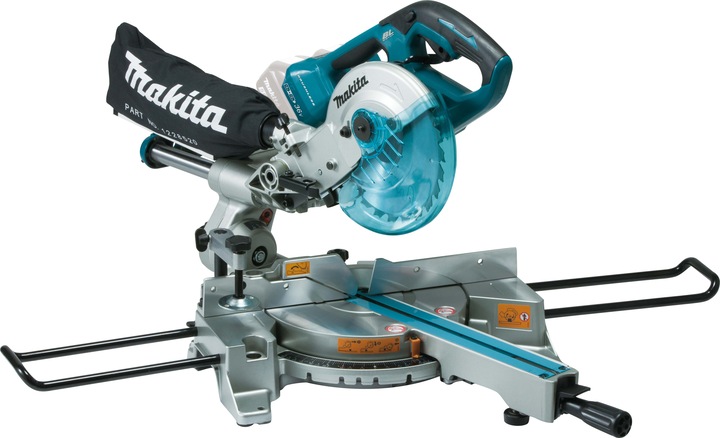

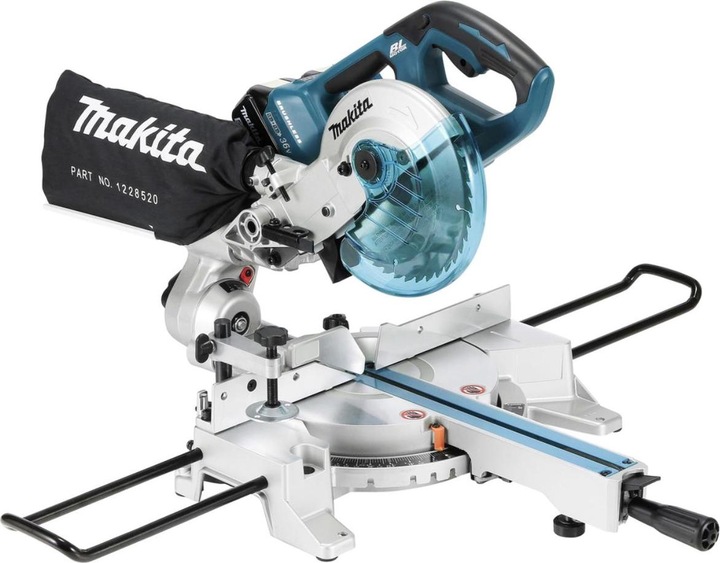

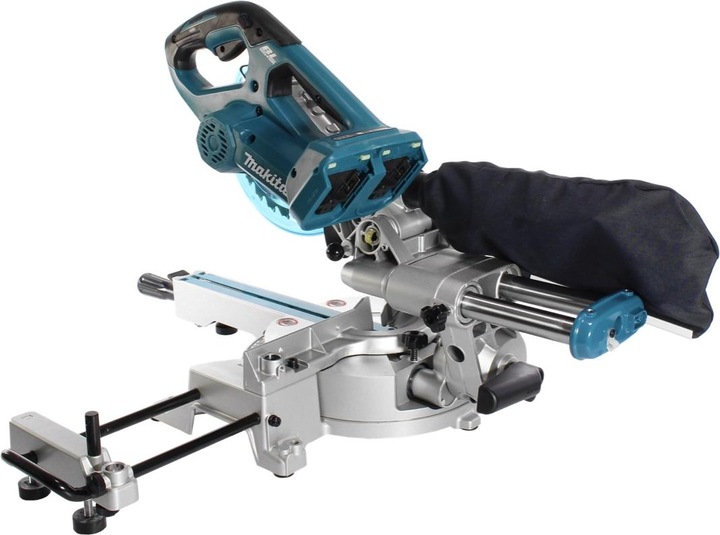

Lightweight and compact cordless miter saw with a brushless motor and deep discharge protection. The device automatically shuts off when the battery is nearly empty. Delivery is in a box without battery, charger, or case. Brushless, maintenance-free, and durable motor with ADT (Automatic Torque Drive Technology). During operation, the speed is automatically regulated to achieve optimal performance based on requirements. The dual sliding mechanism increases cutting performance while maintaining a compact design. Very smooth sliding mechanism due to four-point bearing with linear ball bearings. The work table can be rotated continuously to the right by 57° and to the left by 47°. A stand is available as optional equipment. Features soft start and motor brake. The saw head can be tilted continuously to the left up to 45° and to the right up to 5°.

Key specifications

Nominal diameter
190 mm
Max. depth of cut at 90°
30 mm
Battery voltage
36 V
Mains voltage
240 V
Power
714 W
Item number
12230387

General information

Manufacturer
Makita
Category
Chop saw + mitre saw
Manufacturer no.
DLS714Z
Release date
24.10.2019

Colour

Colour
Grey
Exact colour description
BlackTurquoise

Chop saw + mitre saw Features

Max. tilt adjustment
57°
Mounting hole
20 mm

Saw blade properties

Nominal diameter
190 mm

Depth of cut

Max. depth of cut at 90°
30 mm
Max. Depth of cut at 45
52 mm

Energy supply

Power supply
Rechargeable battery operated

Battery / accumulator features

Battery type
Li-ion
Battery voltage
36 V
Battery equipment
No batteries supplied
Charger equipment
No charger supplied

Mains operation Features

Mains voltage
240 V
Cable length
0.66 m

Power

Power
714 W
Max. Idle speed
5700 rpm
Max. noise level
88 dB
Sound power level (LWA)
98 dB
Sound pressure level (LpA)
88 dB

Material

Material group
Plastic
Material
PlasticRubber

Origin

Country of origin
USA

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
In cartons

Product dimensions

Length
655 mm
Width
430 mm
Height
445 mm
Weight
13.50 kg

Package dimensions

Length
67 cm
Width
50 cm
Height
36 cm
Weight
18.82 kg
