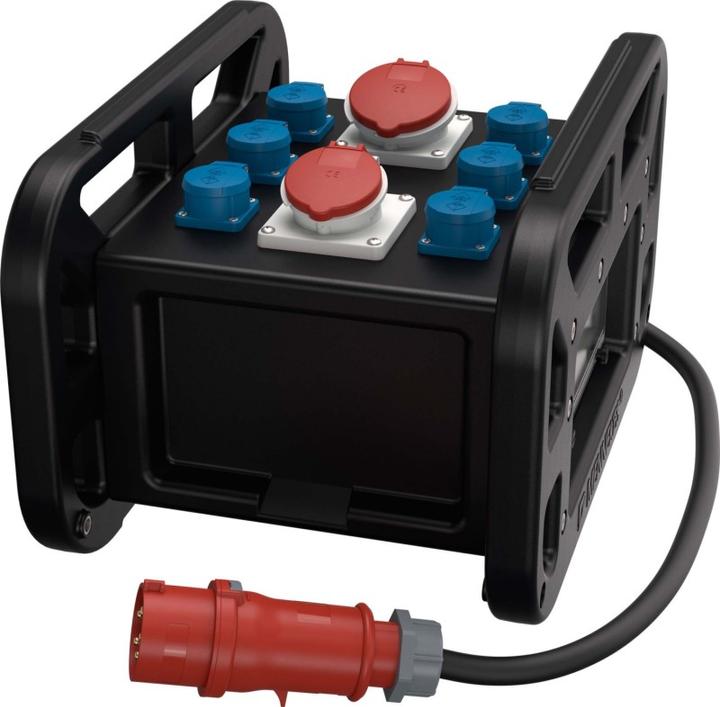

Mennekes Distributor EverBOX GRIP 9502969SW

Manufacturer: Mennekes
Designation: Distributor EverBOX GRIP portable
Type: 9502969SW

CEE socket - 16 A: 1x16A5p400V
CEE socket - 32 A: 1x32A5p400V
CEE socket - 63 A: without
CEE socket - 125 A: without
Number of SCHUKO sockets: 6
Fuse protection: LS switch
Residual current type: A
FI circuit breaker: FI with IFN 0.03 A (standard)
Material of housing: Plastic
Contact material: CuSn
Surface treatment Contacts: Untreated
Feeding/connection possibility: Supply cable with plug
Cable length: 2 m
Handling: portable
Protection class (IP): IP44
Military version: no
Colour: grey
Height: 530 mm
Width: 370 mm
Depth: 320 mm

Mennekes Distributor EverBOX GRIP 9502969SW: more details
Distributor EverBOX GRIP, portable wired ready for connection
Protection class IP 44
Enclosure: 1 PE housing 530 x 370 x 320 mm (L x W x H) black RAL 9005, stackable, with carrying handles black. The all-round carrying handles provide maximum grip comfort and at the same time serve as additional protection for housing, sockets and fuse elements. Fuse protection under transparent operating flaps.

Equipment/fuse protection:

• 1 CEE-socket 32A5p 6h 400V IP 44
• 1x CEE-socket 16A5p 6h 400V IP 44
• 1x LS-switch 16A 3p C 10KA
• 6x Schuko-sockets 16A2p+E 230V IP 44
• 6x LS-switch 16A 1p C 10KA
• 1x FI-circuit breaker 40A 4p IFN=0,03A

Supply cable/connection possibility: 2m supply cable H07RN-F5G4 and CEE-plug 32A5p 6h 400V.
