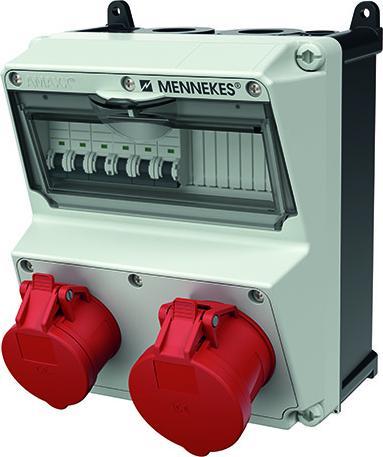

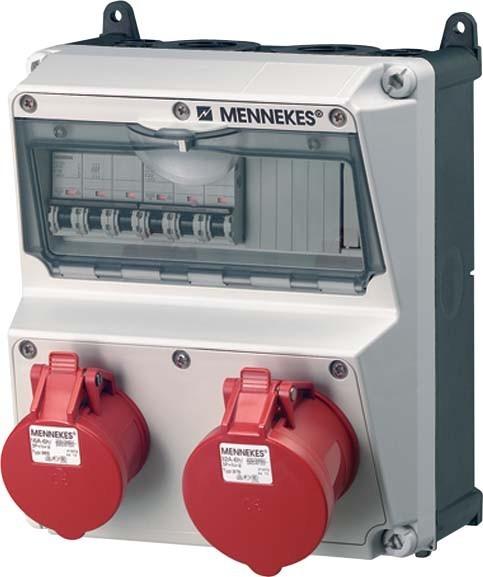

Mennekes MEN 920021 Socket outlet combination AMAXX
1 x, Type 25Product details
Combine instead of installing individually. Many single sockets with separate wiring are expensive, impractical, and increase fire load. With AMAXX, you can combine smartly and save valuable installation time. Why? Only one power supply, fewer drill holes, fewer cable and pipe clamps, and just one housing, whose external fastening allows for one-person installation. The hinged, side-opening housing cover, as well as the extendable hat profile rails and the large connection space, make connection work easier. AMAXX is pre-wired and ready for connection, tested for electrical safety and quality according to IEC 61439. Additional advantages include the generally angled socket direction for easier handling when plugging and unplugging, the transparent operating window for modular devices (if available) with a latching closure, several different pre-shaped cable entry options, and the non-lost cover screws for quick opening and closing of the housing. High impact resistance and shape stability in both cold and heat, as well as the reduction of hazards in case of fire due to self-extinguishing materials, characterize our AMAXX product line. Applications: everywhere you want to make an impression not only technically but also visually. Do you also want to combine data technology instead of installing it individually, need a solution for a narrow niche, want to have a mobile unit always at hand, or even install a suspended solution? Our AMAXX product family offers a variety of solution options. Talk to your advisor.
input voltage | 400 V |
Output voltage | 400 V |
Number of power sockets | 1 x |
Circuit breaker type | Fault current circuit breaker, Miniature circuit-breaker/residual current circuit-breaker combination |
Protection type (IP code) | IP44 |
Item number | 32107682 |
Manufacturer | Mennekes |
Category | Power distributors |
Manufacturer no. | 920021 |
Release date | 16.11.2022 |
Colour | Grey |
Exact colour description | Grey |
Material group | Plastic |
Material | Plastic |
mounting type | Wall-mounted |
input voltage | 400 V |
Plug type | CEE 7/3 |
Area of use | Inside |
Output voltage | 400 V |
Number of power sockets | 1 x |
Socket type | Type 25 |
Circuit breaker type | Fault current circuit breaker, Miniature circuit-breaker/residual current circuit-breaker combination |
Protection type (IP code) | IP44 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Width | 22.50 cm |
Length | 22.10 cm |
Height | 26 cm |
