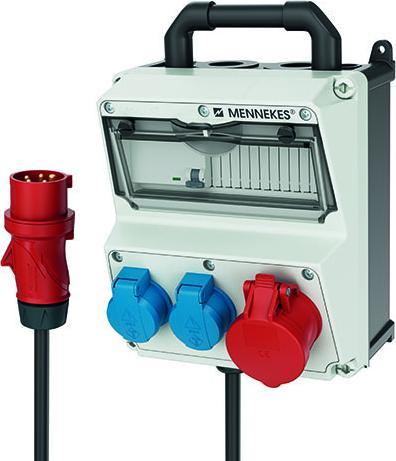

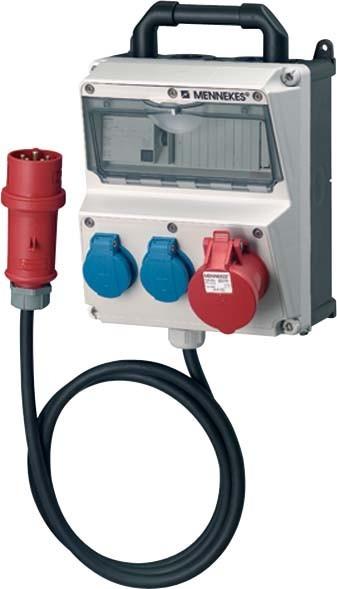

Mennekes MEN 920035 Socket outlet combination AMAXX
2 x, CEE 32/3Product details
Combine instead of installing individually. Many single sockets with separate wiring are expensive, impractical, and increase fire load. With AMAXX, you can combine smartly and save valuable installation time. Why? Only one power supply, fewer drill holes, fewer cable and pipe clamps, and just one housing, whose external fastening allows for one-person installation. The hinged, side-opening housing cover, along with the retractable hat profile rails and the large connection space, facilitate connection work. AMAXX is pre-wired and ready for connection, tested for electrical safety and quality according to IEC 61439. Additional advantages include the generally angled plug direction for easier handling when plugging and unplugging, the transparent operating window for modular devices (if available) with a locking closure, several different pre-formed cable entry options, and the captive cover screws for quick opening and closing of the housing. High impact resistance and shape retention in cold and heat, as well as the reduction of fire hazards through self-extinguishing materials, characterize our AMAXX product line. Application areas: everywhere you want to make a technical and aesthetic impression. Do you also want to combine data technology instead of installing it individually, need a solution for a narrow niche, want to have a mobile unit always at hand, or even install a suspended solution? Our AMAXX product family offers a variety of solution options. Talk to your advisor.
input voltage | 630 V |
Output voltage | 500 V |
Number of power sockets | 2 x |
Circuit breaker type | Miniature circuit-breaker/residual current circuit-breaker combination |
Protection type (IP code) | IP44 |
Item number | 32107688 |
Manufacturer | Mennekes |
Category | Power distributors |
Manufacturer no. | 920035 |
Release date | 16.11.2022 |
Colour | Grey |
Exact colour description | Grey |
Material group | Plastic |
Material | Plastic |
input voltage | 630 V |
Plug type | CEE 63/5 |
Area of use | Inside |
Output voltage | 500 V |
Number of power sockets | 2 x |
Socket type | CEE 32/3 |
Circuit breaker type | Miniature circuit-breaker/residual current circuit-breaker combination |
Protection type (IP code) | IP44 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Width | 22.50 cm |
Length | 20.90 cm |
Height | 26 cm |
Product Safety |
