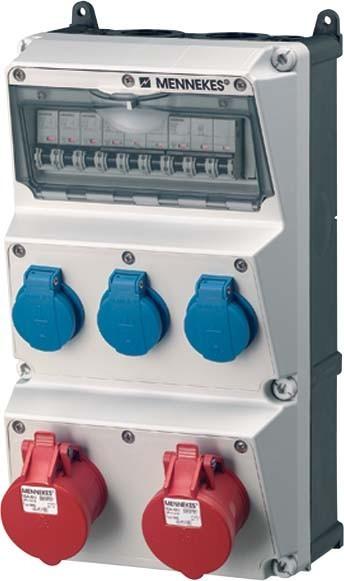

Mennekes MEN 930004 Socket outlet combination AMAXX
3 x, CEE 63/5Product details
Combine instead of installing individually. Many single sockets with separate supply lines are expensive, impractical, and increase fire load. With AMAXX, you can combine smartly and save valuable installation time. Why? Only one supply line, fewer drill holes, fewer cable and pipe clamps, and just one housing, whose external fastening allows for one-person installation. The hinged, side-opening housing cover, along with the extendable hat profile rails and the large connection space, make connection work easier. AMAXX is pre-wired and ready for connection, tested for electrical safety and quality according to IEC 61439. Additional advantages include the generally angled plug direction for easier handling when plugging and unplugging, the transparent operating window for modular devices (if available) with a locking closure, several different pre-formed cable entry options, and the captive cover screws for quick opening and closing of the housing. High impact resistance and shape retention in cold and heat, as well as the reduction of hazards in case of fire through self-extinguishing materials, characterize our AMAXX product line. Suitable locations: everywhere you want to score points not only technically but also aesthetically. Do you also want to combine data technology instead of installing it individually, need a solution for a narrow niche, want to have a mobile unit always at hand, or even install a suspended solution? Our AMAXX product family offers a variety of solutions. Talk to your advisor.
input voltage | 630 V |
Output voltage | 500 V |
Number of power sockets | 3 x |
Circuit breaker type | Fault current circuit breaker, Miniature circuit-breaker/residual current circuit-breaker combination |
Protection type (IP code) | IP44 |
Item number | 32107733 |
Manufacturer | Mennekes |
Category | Power distributors |
Manufacturer no. | 930004 |
Release date | 16.11.2022 |
Colour | Grey |
Exact colour description | Grey |
Material group | Plastic |
Material | Plastic |
mounting type | Wall-mounted |
input voltage | 630 V |
Plug type | CEE 63/5 |
Area of use | Inside |
Output voltage | 500 V |
Number of power sockets | 3 x |
Socket type | CEE 63/5 |
Circuit breaker type | Fault current circuit breaker, Miniature circuit-breaker/residual current circuit-breaker combination |
Protection type (IP code) | IP44 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Width | 22.50 cm |
Length | 20.90 cm |
Height | 39 cm |
